Model: HZT-1A
Description

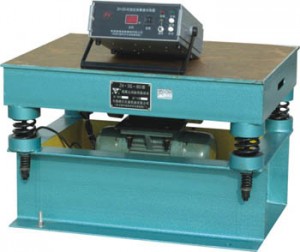

The vibrating table is used to form concrete specimens in lab, it uses electromagnetic force to clamp the moulds, it’s comprised of base support, vibrator, four springs, the table and base are made of steel plate and structural steel, the vibration table is driven by motor through a couple of eccentric gear, they are installed in the center of the riverside of the table. Through the controller to control the start/off and can set the vibration time.
Technical specifications
| Table size | 600mm×800mm |
| Vibration frequency | 50Hz±3Hz |
| Vibration Amplitude | 0.5±0.02mm |
| Vibration time | 0-99s( free set) |
| Vibration mode | Vertically simple harmonic vibration |
| Vibration uniform degree | <15% |
| Zero load vibration noise | <85db(A) |
| Magnetic grip force | ≥800N(each) |
| Once time forming Specimen qty | 150mm3 /6pcs; 100*100*300mm/ 3pcs |
| Power supply | AC 380V, 3phase, 50Hz |
| Vibrator power | 1.6KW |
| Net weight | 345KG, 270KG |
| Overall size | 600*800*530mm |
