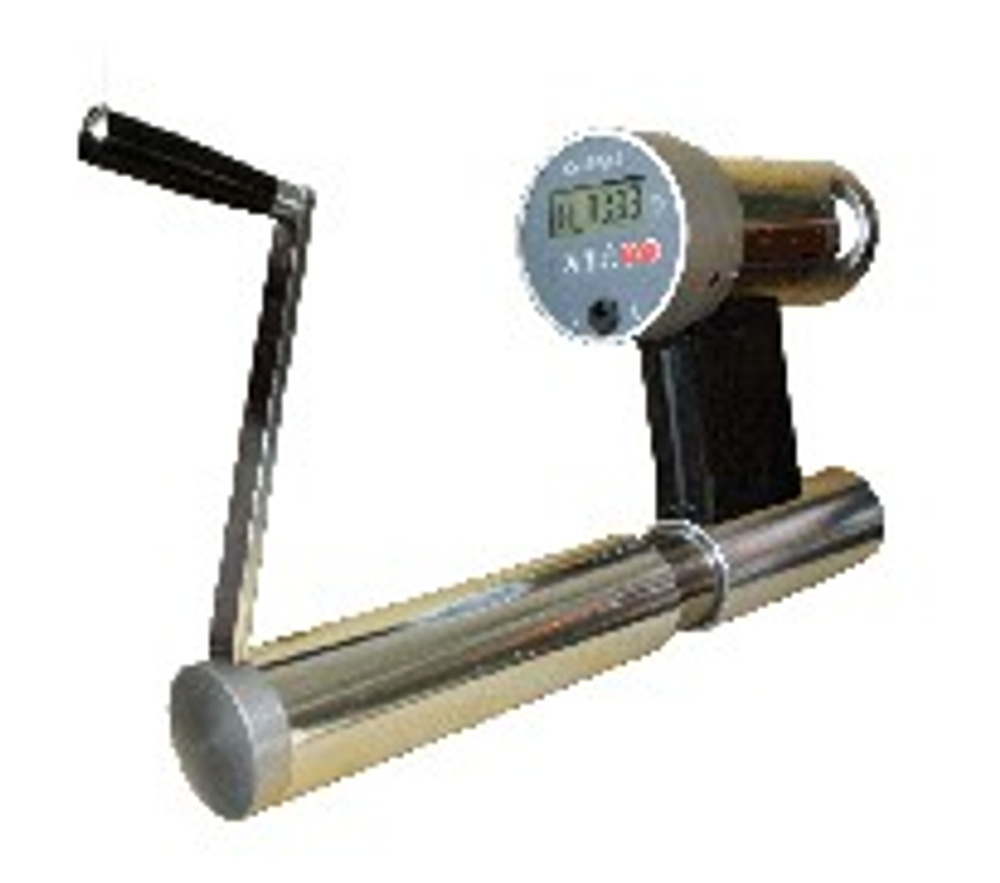

Concrete Pull Out Strength Tester

Model: HLB-80

Description

This tester is used to test the existing concrete structure compressive strength thus to determine the actual strength.

Features

• Large pull out force, can be used in post-installation or precast way, wide application
• Backlight display, can be used in various conditions
• The swollen spring can be used repeatedly
• Cylindrical pull out way for smaller damage surface, better accuracy & performance

Technical Specifications

1. Allowed max pull out force 60+10%kn
2. Working temperature -10-60 degree C
3. Cylinder piston valid area 25.13c㎡working
4. Rod piston max stroke 4mm
5. Compressive strength test 10~80mpa
6. Indicating error: ＜±2%F.S
7. Main machine net weight: 5kg

Packing list

Main machine 1set, portable drilling unit, testing accessories
