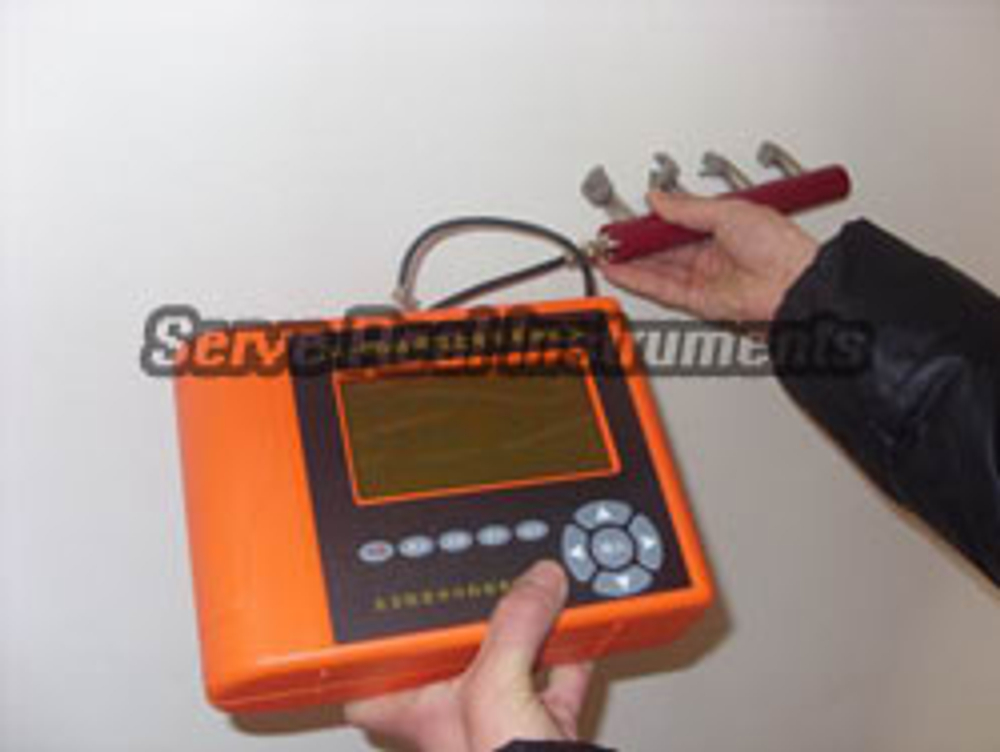

Concrete resistivity meter, Concrete durability test

Model: HDZ-4000

Description

The meter is used to test the Concrete resistivity, it is kind of common concrete NDT instrument.

Features

Handle type batter powered digital set;

Handle type probes

K*cm direct reading, low frequency AC technology

Long tooling life battery;

Power-saving LCD display;

Automatic high resistance surface condition;

Portable carrying case equipped;

Steel bar continuous inspection set;

No more than 1min of each test;

Technical specifications

1. Range: 0-20 kΩcm, 0~200 kΩcm, 0-2000 kΩcm

2. Display resolution: 0.1 kΩcm

3. Accuracy: ±1 kΩcm

4. Max. test range: 2000 kΩcm

5. Overall size: 190mm*183mm*84mm

6. Weight: 650g (main machine)
