Model: HZT-1
Description

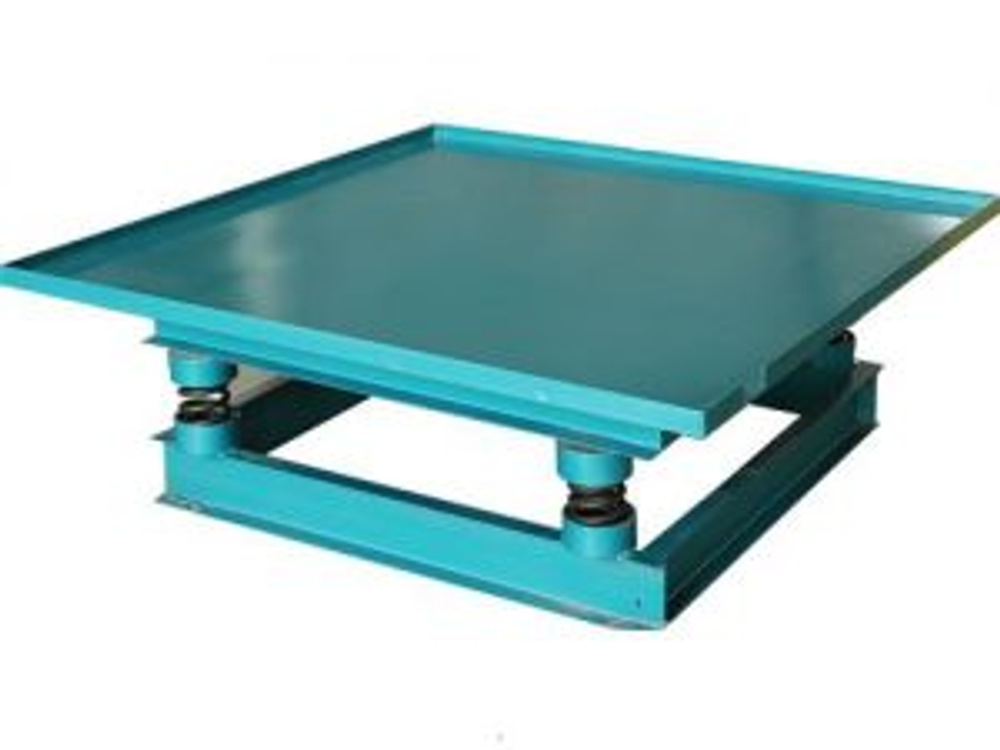

The vibrating table machine is used to form concrete specimens in lab, it’s comprised of base support, vibrator, four springs, the table and base are made of steel plate and structural steel, the vibration table is driven by motor through a couple of eccentric gear, they are installed in the center of the riverside of the table. It’s kind of very common concrete testing instrument.
Technical specification
| Table size | 500×500, 800×800, 1000×1000mm |
| Vibration frequency | (50±3)Hz |
| Vibration amplitude | 0.3-0.6mm |
| Max vibration load | 250kg |
| Vibration force | 5000-9000N |
| Vibrator power | 0.55/ 1.1 /1.5 KW |
| Aggregate size | <40mm |
| Specimen height | <200mm |
| Power supply | 3ph, AC 380V/50Hz |
| Overall size | 1000*1000*420mm |
| Machine weight | 65/140/240 kg |
