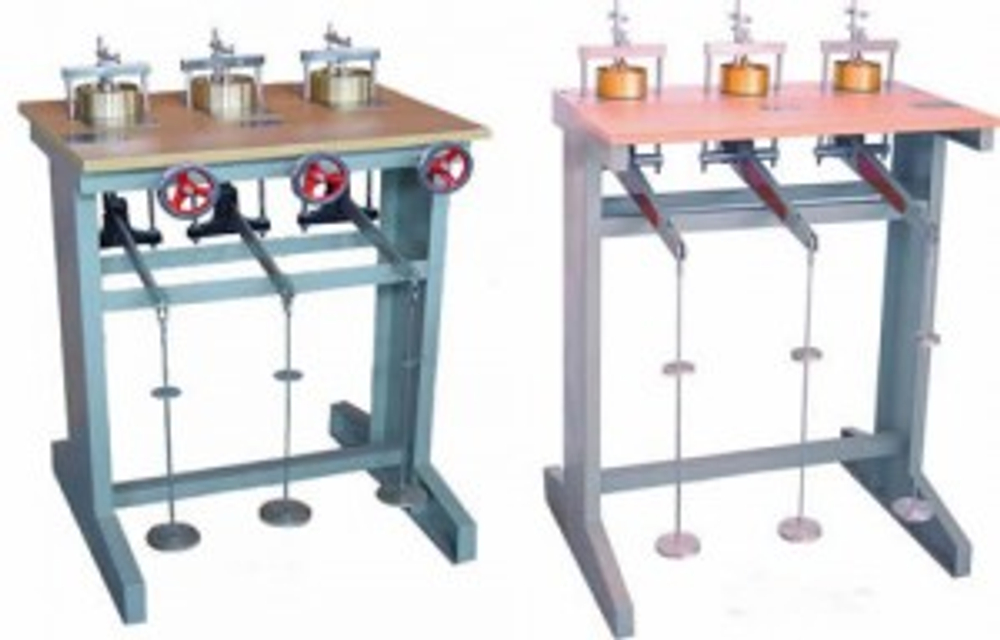

Consolidation testing apparatus, Odeometer

Standards: GB4935-1996, SL237-1999, JTG-E40-T0135-93

Model: TGJ-3

Description

The triple gang consolidation apparatus is used to determine the soil compression characteristics, then calculate the soil unit deposition, compression index, rebound index, and consolidation efficient. It’s kind of very common soil mechanical testing instrument.

Technical parameters

1. Applying pressure:

Low pressure: 12.5kPa/800kPa/30cm², 12.5kPa/400kPa/50cm²

Middle pressure: 12.5kPa/1600kPa/30cm², 12.5kPa/800kPa/50cm²

High pressure: 4000kPa/30cm², 2000kPa/50cm²

2. Loading lever ratio: 12:1(low/middle pressure, 20:1, 24:1(high pressure)

3. Specimen area: 30cm², 50cm²

4. Instrument structure: steel structure
