Standards: GB/T50081-2002
Model: CTM-1000/2000P
Description

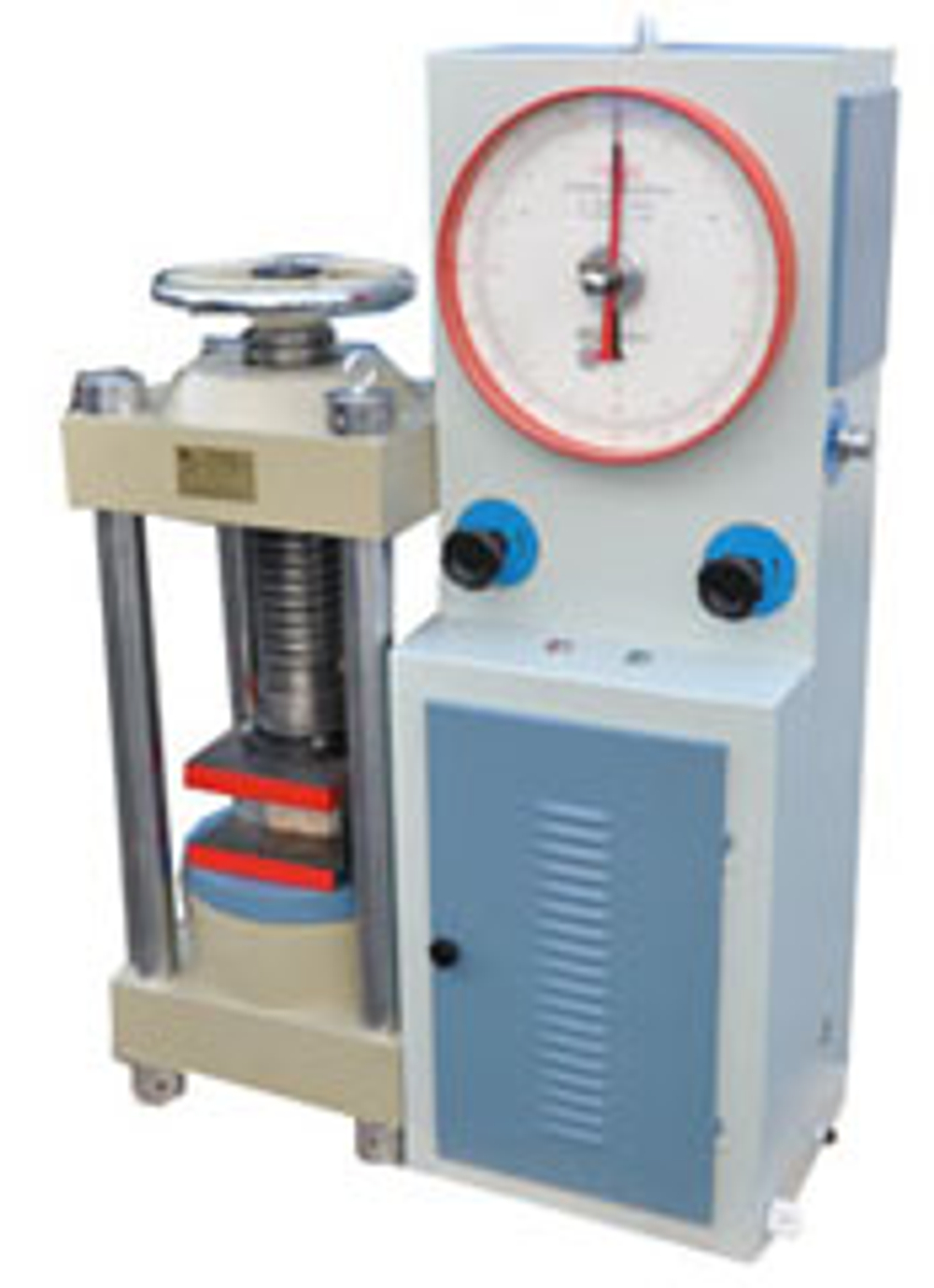

This machine can be used to test the compression strength of construction materials, Jack and other metal components.
Technical Specifcations
| Term | Spec. | Spec. |
| Max. Capacity | 2000KN | 1000KN |
| Hydraulic pump rated pressure | 40Mpa | 40Mpa |
| Indication value relative error | ±2% | ±2% |
| Piston max stroke | 40mm | 40mm |
| Testing range | 0-800/2000KN | 0-500/1000KN |
| Platen size | 220*280 | 220*280 |
| Upper lower platen Max. distance | 330mm | 330mm |
| Overall size | 960*460*1440 | 960*460*1440 |
| Net weight | 850kg | 850kg |
