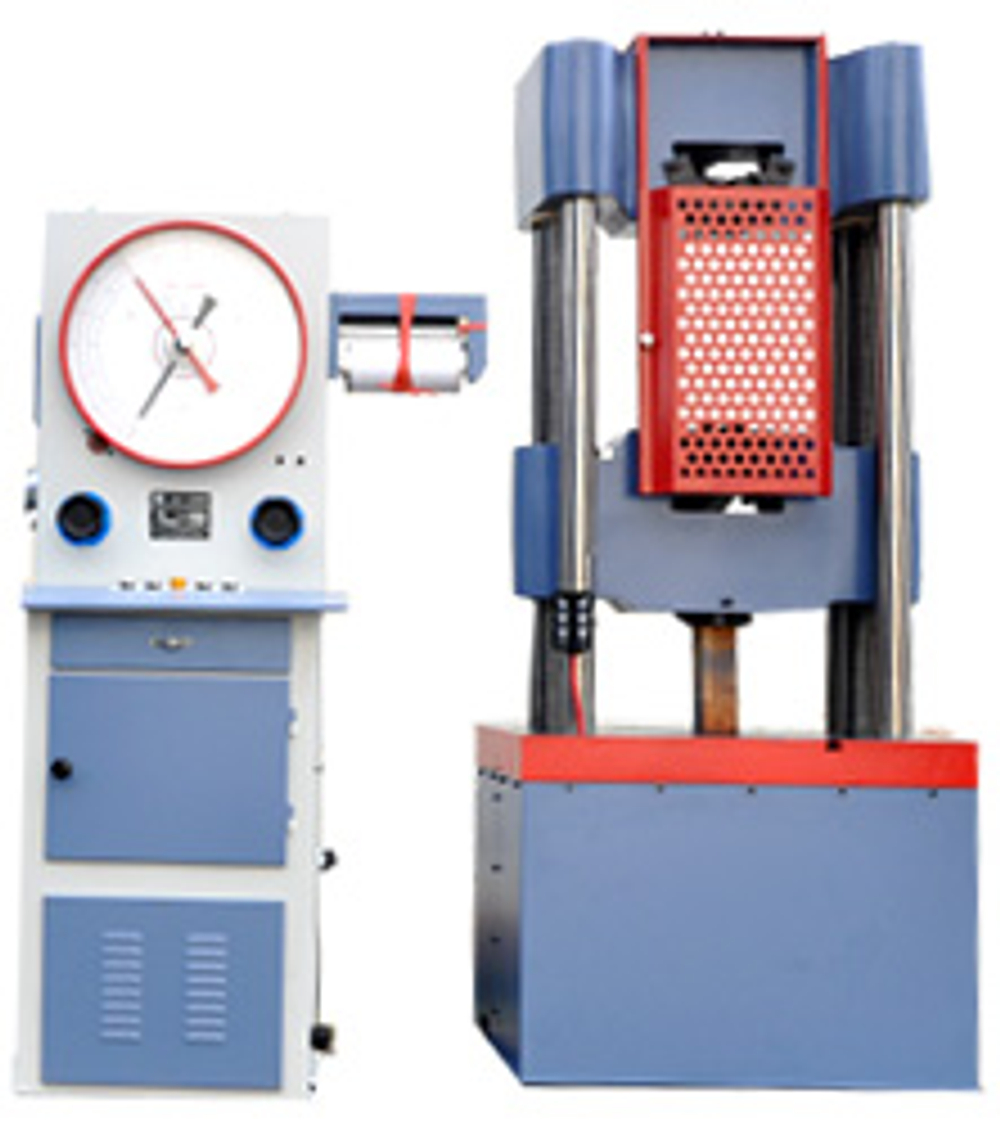

Model: UTM-P
Description
The universal testing machine is used to perform stretch, compression, bending test of metal materials, also can be used for concrete and other construction materials strength test. Also equips cold-bending accessories for metal process test.
Technical specifications
| SPEC. | ||||
| Max. capacity | 300KN | 600KN | 1000KN | |
| Testing range | 0~60KN, 0~150KN, 0~300KN | 0~200KN, 0~500KN | 0~200KN, 0~500KN, 0~1000KN | |
| Testing accuracy ( after 20% F.S of each degree) | ±1% | ±1% | ±1% | |
| Pressure keeping time | ≥30s | ≥30s | ≥30s | |
| Upper lower jaw max. distance( including piston travel) | 500mm | 500mm | 500mm | |
| Upper lower platen distance( compression test) | 0~500m | 0~500m | ||
| Two supporting point max. distance( bending test) | 100~360mm | 100~420mm | 100~420mm | |
| Round sample clamp diameter( stretch test) | φ8~φ32mm | ￠20~φ60mm | ||
| Flat sample clamp thickness( stretch test) | 0~15mm | 0~40mm | 0~40mm | |
| Working piston max. stroke | 150mm | 200mm | ||
| Working piston fastest lifting speed( empty lad) | 0~80mm/min | 0~80mm/min | 0~80mm/min | |
| overall size | Main machine | 740×460×1970mm | 960×620×2150mm | 960×620×2150mm |
|
| Dynamometer | 600×600×1780mmm | 600×660×1780mm | 600×660×1780mm |
| Net weight | Main machine |
