This series dial gauges has function of self data acquisition, by work together with data cables, hubs, multi channel datas can be sync readout in computer.
Technical specifications
| Measuring range | 0-5mm | 0-12.7mm | 0-25.4mm | 0-50.8mm | 0-100mm |
| Measuring force | ≦1.5N | ≦1.5N | ≦2.2N | ≦2.5N | ≦2.5N |
| Resolution | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| Accuracy | ≦±0.02mm | ≦±0.02mm | ≦±0.02mm | ≦±0.02mm | ≦±0.03mm |
| Measuring range | 0-5mm | 0-12.7mm | 0-25.4mm | 0-50.8mm | 0-100mm |
| Measuring force | ≦1.5N | ≦1.5N | ≦2.2N | ≦2.5N | ≦2.5N |
| Resolution | 0.001mm | 0.001mm | 0.0001mm | 0.01mm | 0.001mm |
| Accuracy | ≦±0.004mm | ≦±0.004mm | ≦±0.005mm | ≦±0.006mm | ≦±0.01mm |
Features
High quality industry degree

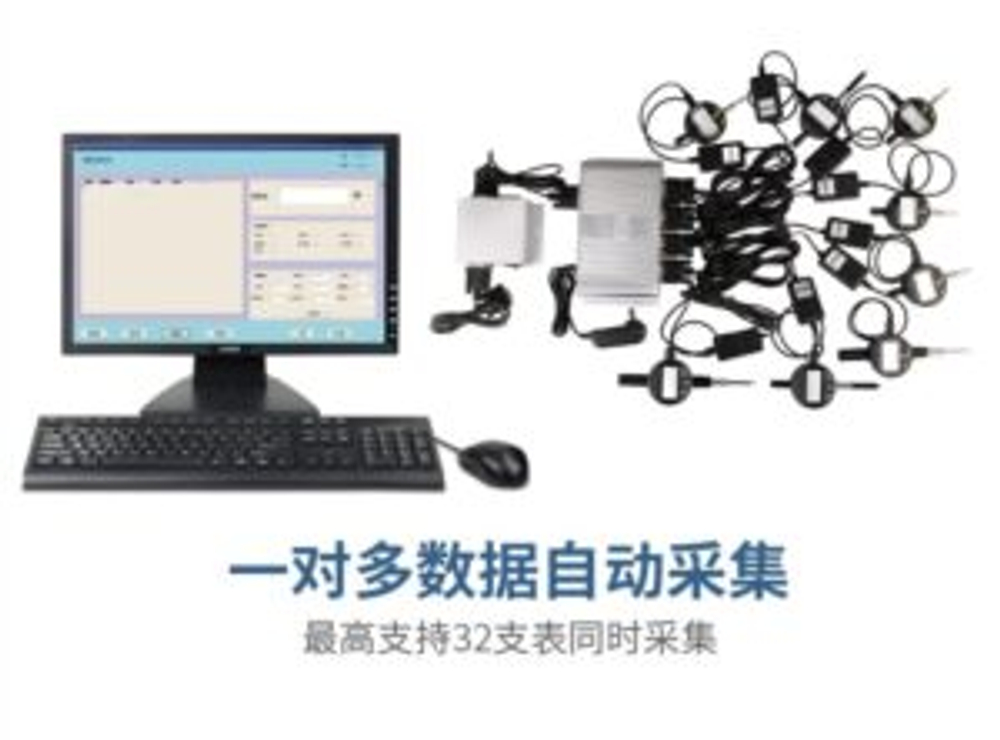

Automatic data acquisition, PC communication, real time measured data display on computer via USB connection, 1 computer can connected max up to 32 gauges (with converters)
Standard /inch unit conversion
ABS original point measurement, no need repeated reset
USB data interface, powerful Lithium battery
Detachable measure head, different head can be replaced on request
Quality glass displacement sensor, free to affects of ambient humidity, temperature, magnetic
