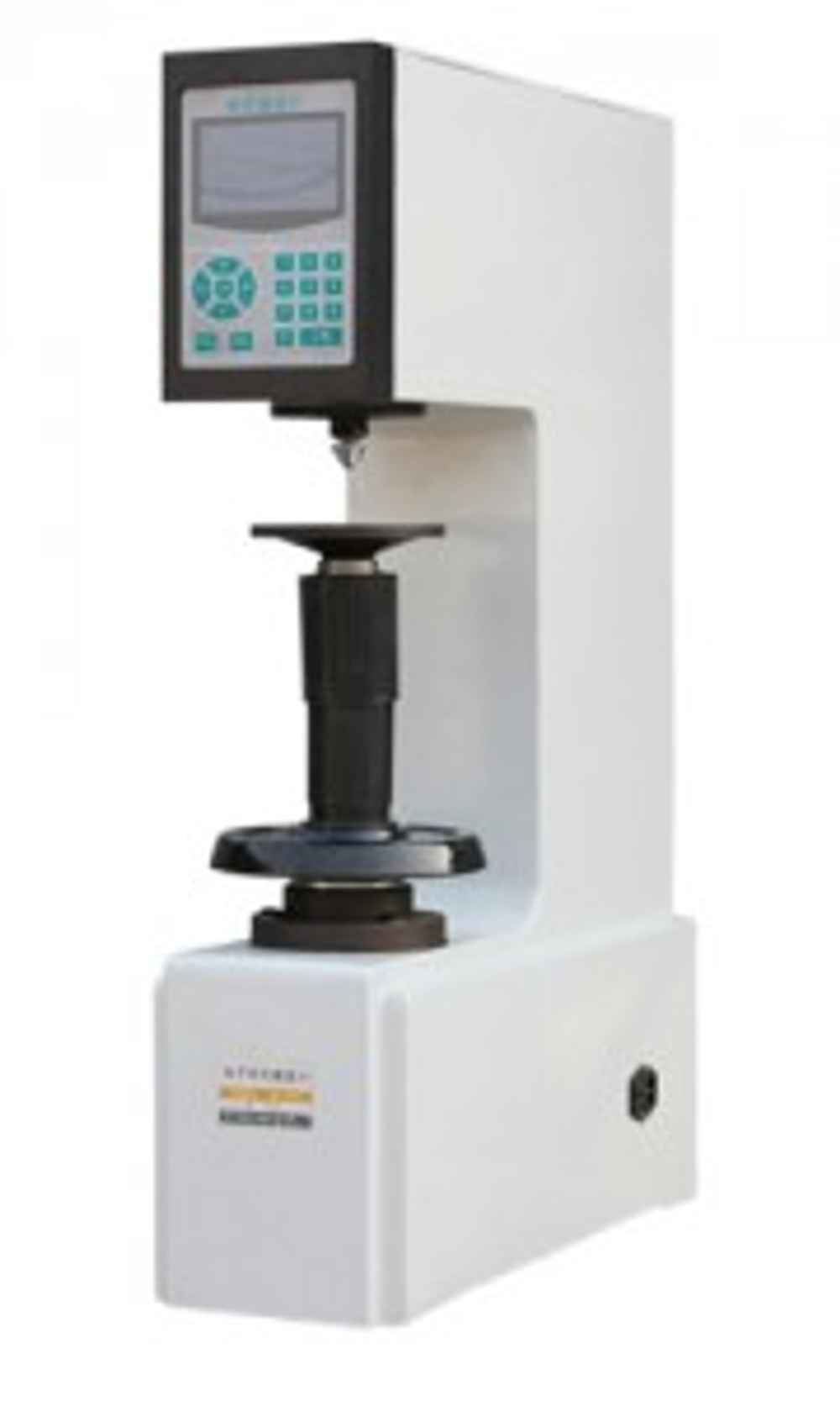

Model: HB-3000C
Application
Castings, annealed steel, normalized steel, ferrous metal, soft alloy. suitable for parallel or curved surface measurement.
Features
Full closed loop control system
10 degree test force for selection, 14 degree scaleplate
Solid structure, good rigidness, high accuracy, durable in use
Overload over-position automatic protection, electric loading, no need weights
English operation manual
Automatic test
Large LCD display, intelligent menu
High accuracy reading microscope measuring system
Meets gb/t231.2, iso6506-2, astm e10 standards
Technical Specifications
| Measuring range | 8-650HBW |
| Test force | 612.9,980.7,1225.9,1838.8,1838.8,2415.8,7355.3,9807,29421N (62.5,100,125,187.5,250,750,1000,3000kgf) |
| Max allowed height | 250mm |
| Pressure head to machine wall distance | 180mm |
| Overall size | 620*250*1000mm |
| Power supply | AC220V,50/60Hz |
| Net weight | 150kg |
Standard Configuration
| Large platform: 1pc, small platform: 1pc, V platform: 1pc |
| Tungsten carbide steel ball press head: Φ2.5, Φ5, Φ10 one each |
| Standard Brinell hardness block: 2pcs |
| 20 times readout microscope: 1pc |
