Model: DPP-2600NS
Description

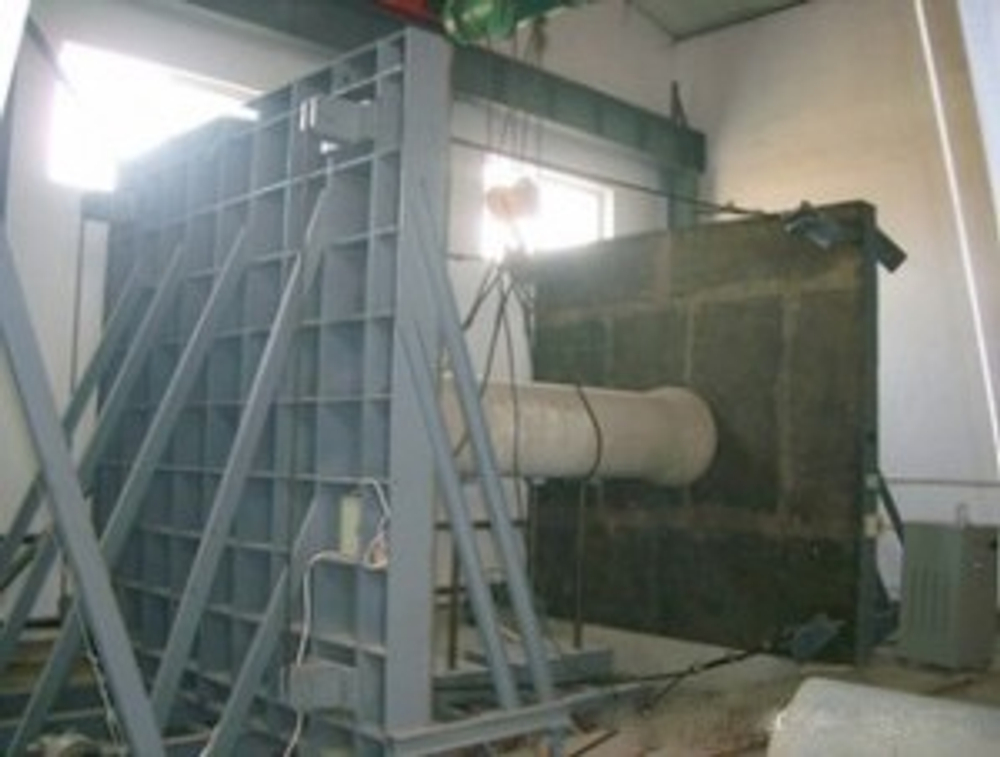

The drain pipe internal pressure testing equipment is mainly used for internal pressure test of drain pipe made of concrete, rebar concrete material, it’s kind of professional material testing machine.
Features
Independent two block platen, easy for test of pipes with different length
Mechanical lifting of pipe support, easy for test of pipes with different diameter
Stable pressuring of the electric pump
Pressuring speed can be adjusted
Electric connection point pressure gauge can guarantee stable water pressure and safety, pressure keeping, automatic stop
High rigidness frame structure
Sample both ends Hydraulic loading, smooth loading, good sealing
Hydraulic gauge display of oil source pressure, can keep after reach max sealing pressure, direct in vision
Overload protection function
Technical Specifications
| Max internal pressure | 0.16Mpa |
| Allowed pipe diameter | 2600mm(300-2600mm, or customized) |
| Allowed pipe length | 5m |
| Support adjusting mode | electric |
| Pressure accuracy | 1.5% |
| Pressure gauge resolution | 0.005mpa |
| Pressure gauge display | digital |
| Protection functioning load | >102% F.S. |
| Pressuring mode | electric |
| Dwell mode | Automatic dwell |
| Power supply | 380V±10%，50HZ |
| Machine weight | 9000Kg |
| Overall size | 13000x4000x4000mm |
