Model: FT-511E
Standards: GB/T4668, ISO 7211.2
Description

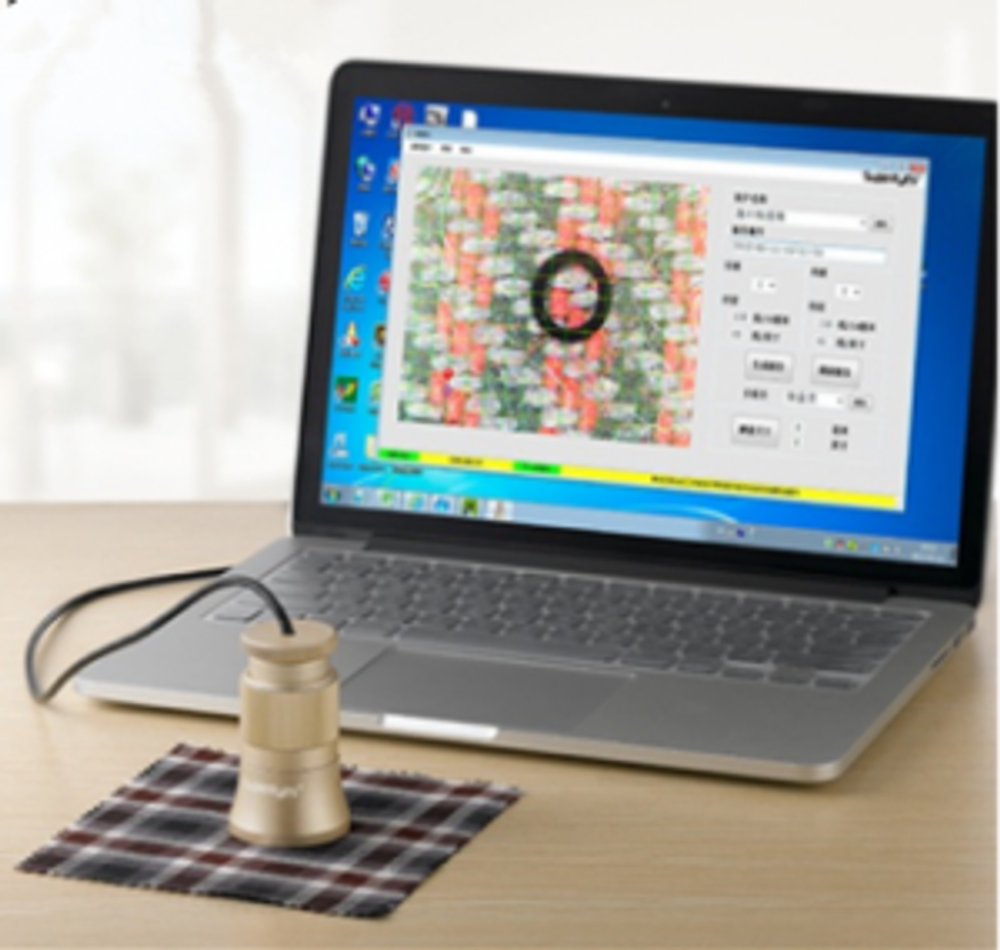

The digital fabric pick counter is specially used to test the fabric pick count. With portable high definition camera to acquire fabric photo, equipped with professional analysis software, thus can test the fabric pick count on computer easily.
Features
Can let 3 yarn as a unit to measure, thus also suitable to test high density cloth.
Processed by professional software
Portable high definition camera with USB port, can directly connect to computer
Freely retrieval of test report, saved in jpg formation
Can measure the size of single yarn or multi yarn
Software can read photos, can re-measure the cloth
Support multi language
Technical Specifications
1. Probe amplification times: 50~200times
3. Accuracy: 99%
4. Recognition range: 1-400yarn/inch
5. Display mode: pick count/10mm, pick count/inch
6. Average analytical time: 4hz
8. Imaging rate: 40FPS
9. Light source: 4 led lamp, fill light
10. Imported CMOS lens, 2m pixel
