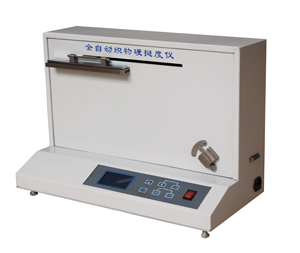

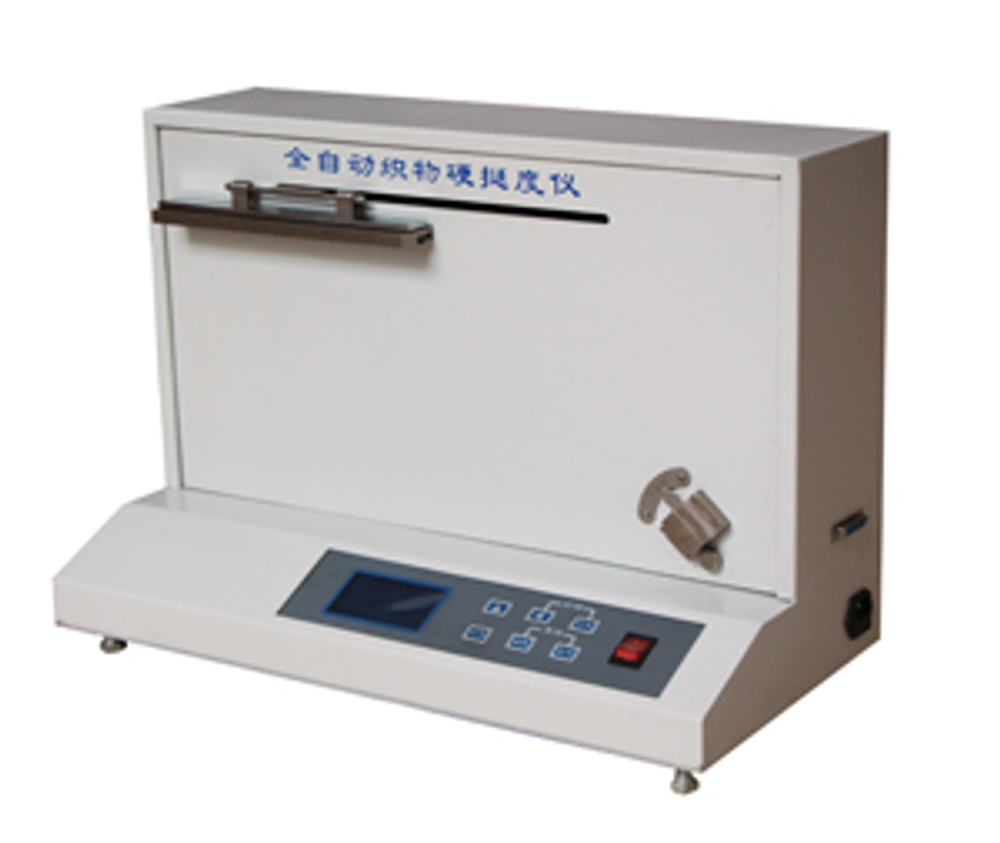

Digital Fabric Stiffness Tester ASTM BS Standards

Model: FT-022D

Standards: ZB WO4003, GB/T18318, ASTM D 1388, IS09073-7, BS EN22313.

Application range

The stiffness tester is used to test the stiffness of woven fabrics, non-woven fabrics, coatings, also suitable for test of paper, leather, thin film materials, it’s kind of common material testing machine.

Technical specifications

1. Measuring accuracy: 41.5°,43°, 45°optional

2. Extension length measurement: 0.5-20cm( or customized)

3. Length display resolution: 0.01 cm

4. Measuring accuracy: 0.01 cm

5. Sample size:2.5×20 cm

6. Work platform size: 5×20 cm

7. Sample press platen size: 2.5×20 cm

8. Sample press platen fitting rate: 0.3cm/s, 0.4cm/s, 0.5cm/s

9. Power supply: AC220V 50HZ

10. Overall size: 450mm×250mm×380mm

11. Net weight: 20KG
