Standards: ASTM D1777
Model: FZ-TG10D

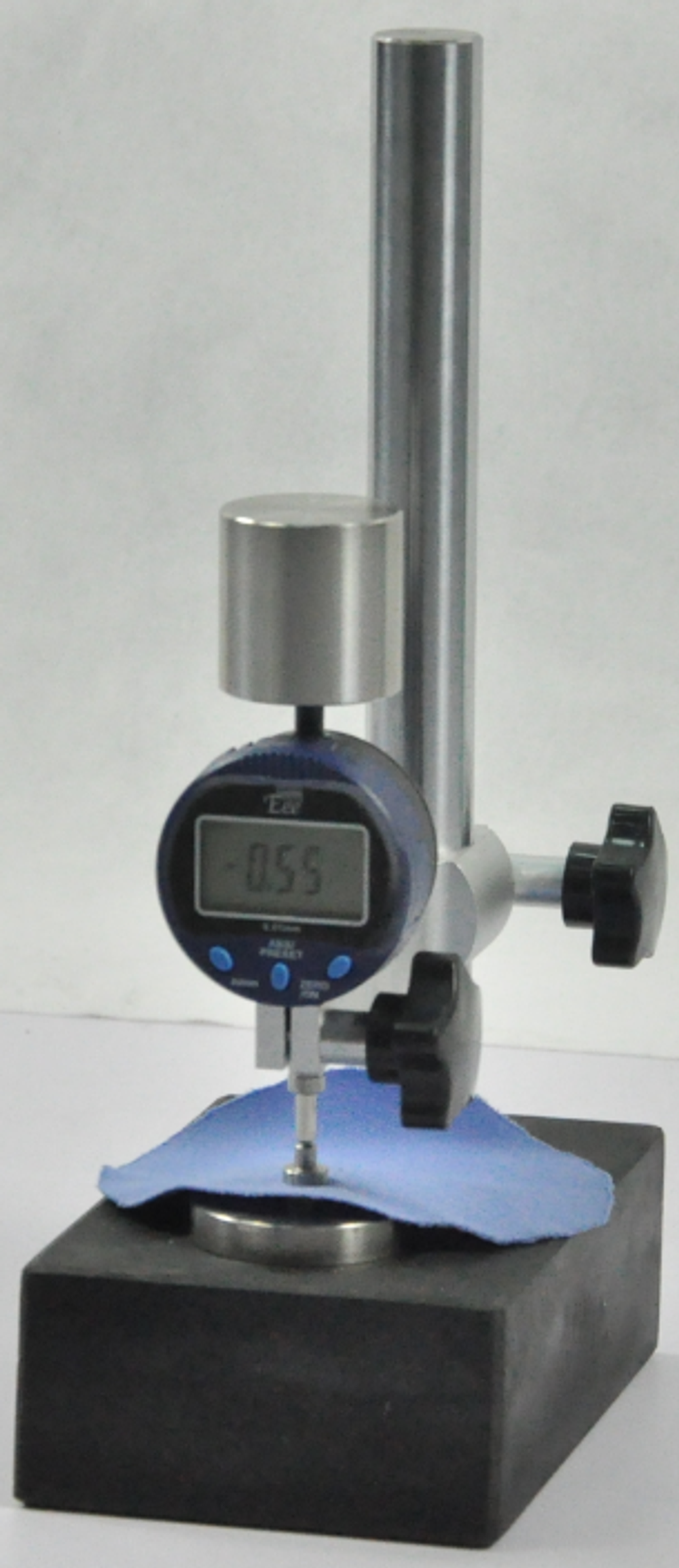

The thickness of soft material can be accurately measured by applying the specified pressure to the specimen with a 1.129 inch (28.7 mm) diameter presser foot. There is a load weight as standard, which can provide 0.6 psi (4.14 kPa) pressure on sample.
Specifications
1. Style type: digital
2. Thickness test range: 0.01~10 mm
3. Accuracy: 0.01 mm (standard)
4. Vertical pressure: 4.14 ± 0.2kPa
5. Presser foot diameter: 28.7 ± 0.02 mm (ASTM D1777)
6. Overall dimension: 200 * 150 * 300 mm
7. Lower pressure plate size: 38 mm
