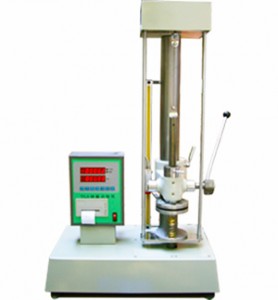

Model: TLY-S
Introduction
Test types: compression, tension, free height, residue height, displacement, deformation, peak value, rigidness, strength
Suitable batch test in production line and lab test
Data storage, query, print
Displacement and load free reset
Test report directly print
Programmable alarm and mechanical limit double protection
Technical specifications
| Model | TLY-S500 | TLY-S1000 | TLY-S2000 |
| Test range | 0-500N | 0-1000N | 0-2000N |
| (0~50kg) | (0~100kg) | (0~200kg) | |
| Load accuracy | 0.01/0.1N | ||
| Displacement accuracy | 0.01mm | ||
| Stretch space | 270mm（can be heighten） | ||
| Compression space | 270mm（can be heighten） | ||
| Max space | 250mm | ||
| Platen diameter | Φ110mm | ||
| Accuracy degree | ±%1 / ±%0.5 | ||
| Deformation indicating value relative error | ≤±(50 0.15L)µm , L （mm）is the distance between platens | ||
| Positioning device | Place positioning device for fast separation of spring | ||
| Control mode | Manual loading, automatic test | ||
| Overload protection | Mechanical limit, program control alarm | ||
| Net weight | 74kg | ||
| Power supply | AC 220V±10% / 50Hz | ||
| Overall size | 600×380×810（mm） | ||
