Standards: GB/T239-1999
Description

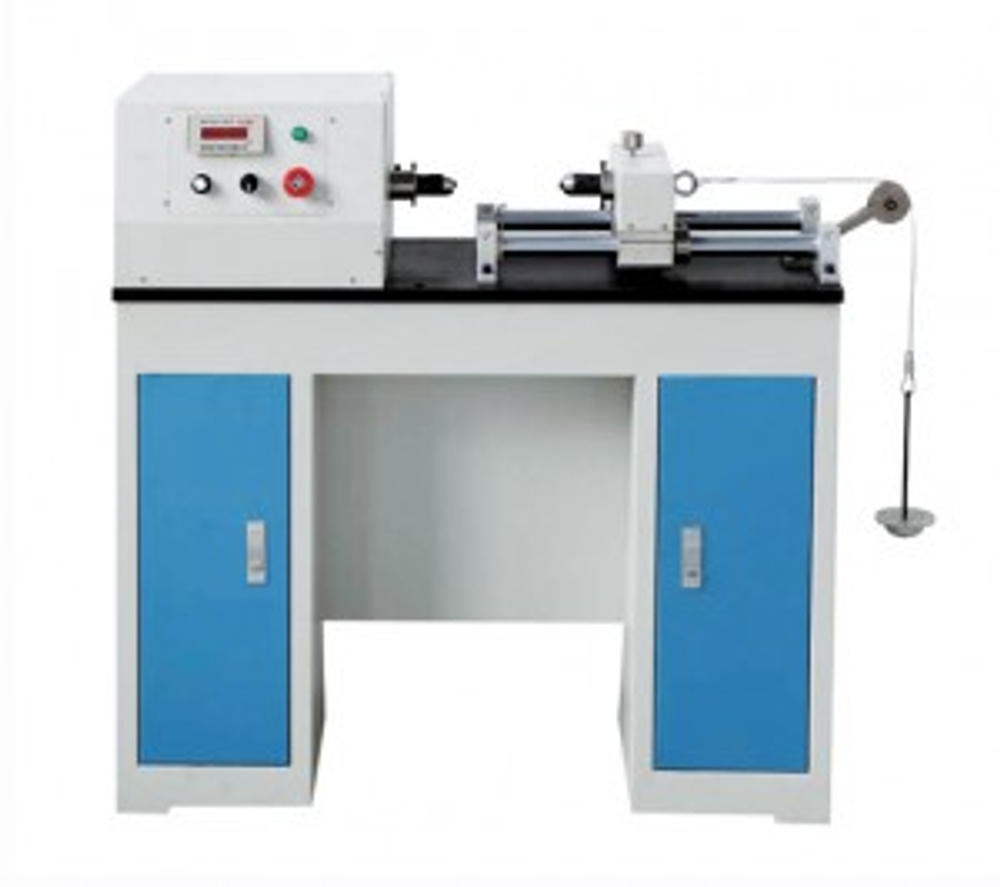

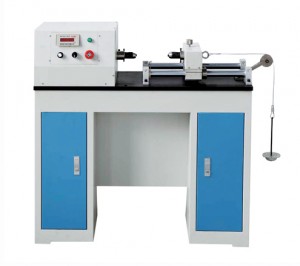

This is a new type digital metal wire torsion testing machine, it has three rotation speed, 30/60/120 rpm, its test diameter range is 0.1-20mm, the wire is clamped in hydraulic way, electric control on oil pressure, oil inlet and output, clamp release and clamp; Max. clamping force is 20kN; clamping diameter and rotation speed adjustable.
Technical specifications
| Model | NZ-1S | NZ-3S | NZ-10S |
| Clamping diameter range (mm) | 0.2-1 | 1-3 | 1-10 |
| Weights weight (N) | 10 | 10,20,50 | |
| Weights accuracy | ≤±1% | ||
| Chucks coaxiality | <0.4 | ||
| Chucks Max. Distance (mm) | 50 | 60 | |
| Clamps Min.distance (mm) | 500 | 570 | |
| Mobile Track flatness(mm) | <0.2 | ||
| Rotation speed(mm/min) | 1.0-300 speed free set | ||
| Rotation direction | Positive, Reverse, Fatigue | ||
| Jaw hardness | HRC55-64 | ||
| Power supply | AC220V±10% | ||
| Overall size(mm) | 1070x400x650 | 1140x400x650 | |
| Machine net weight(kg) | 120 | 120 | 150 |
