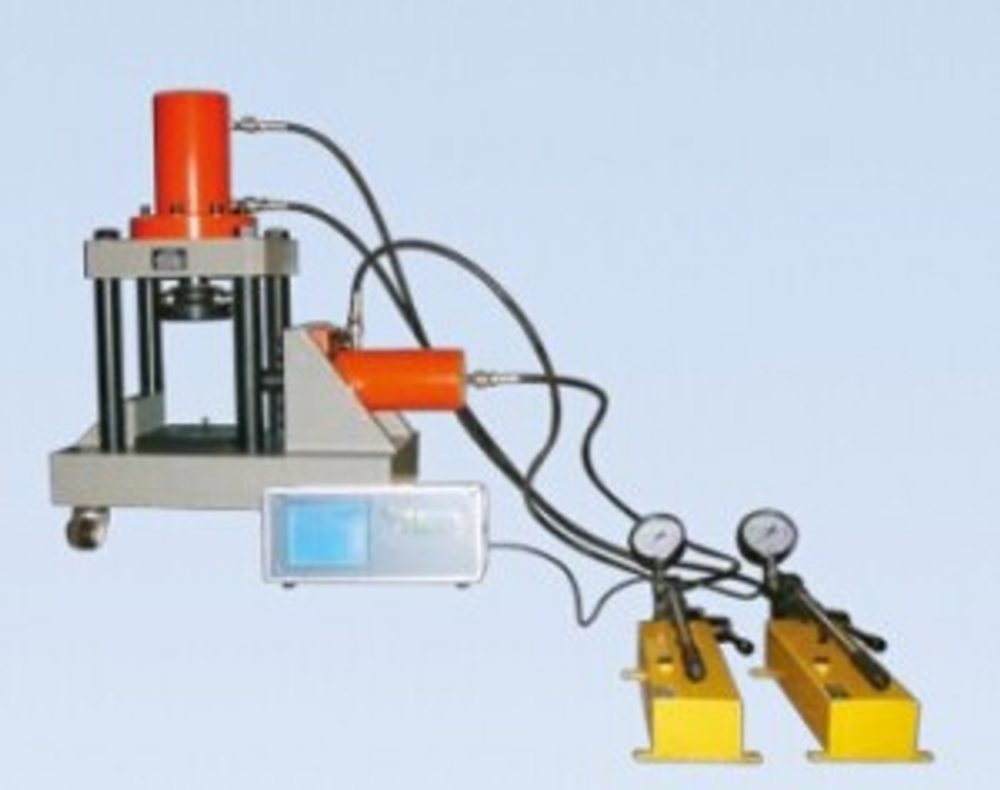

Model: YZJ-30B
SL264-2001 JTG E41-2005
Description
This apparatus is mainly used to perform direct shear test on rock, structure surface, contacting surface between concrete and rock, also contact surface between concrete and other surface. It features easy operation, compact structure, portable, accurate test. It’s kind of advanced rock test equipment in lab.
Main technical specifications
1. Max. Normal pressure: 500KN
2. Normal pressure resolution: 0.01KN
3. Normal piston Max. stroke: 100mm
4.Indication accuracy: ±1%
6. Horizontal Max. shear force: 300KN
7. Shear force resolution: 0.01KN
8. Horizontal piston work stroke: 100mm
11. Normal Max. sapce: 155mm( step adjustable)
12. Horizontal Max. space: 160mm
13. Shear box size: φ50*50mm
14. Manual loading, LCD display
