Model: HRS-150
Description

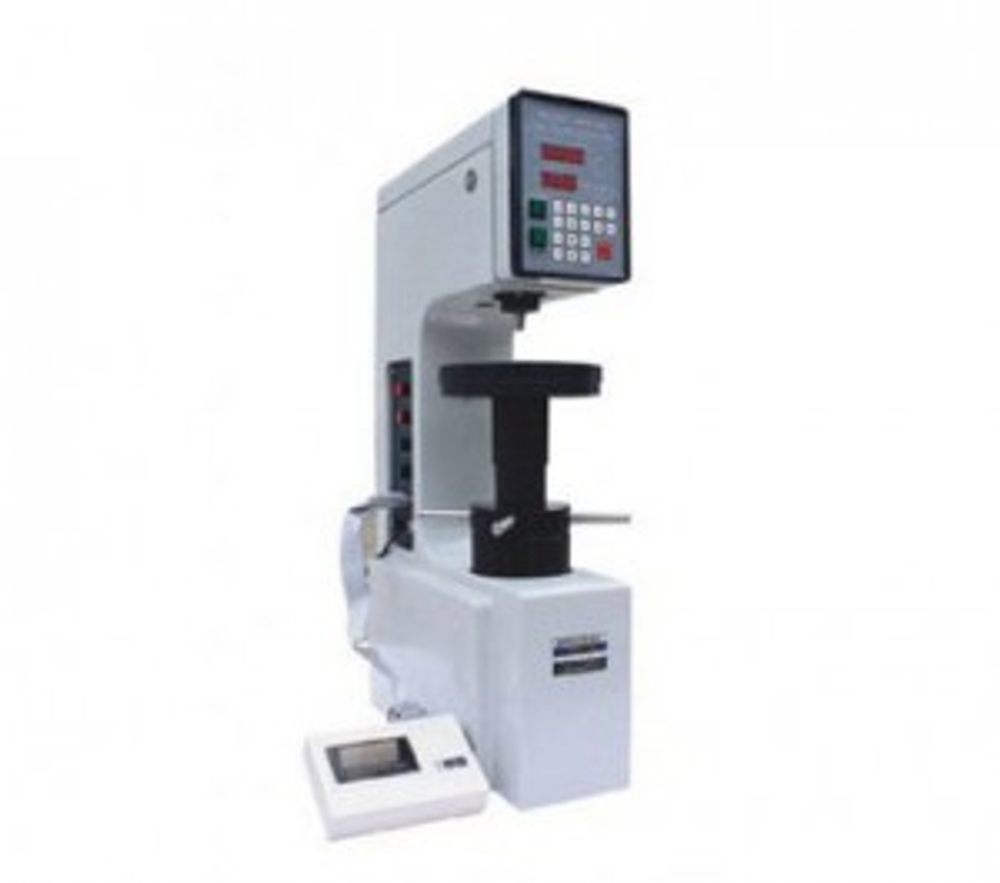

The HRS-150 digital display Rockwell hardness tester is a semi-automatic hardness tester, which can be used to test the Rockwell hardness of ferrous metal, non-ferrous metal, nonmetal materials. The main shaft system adopts friction-free structure, achieve automatic testing force loading/keep/unloading, which avoid the error caused by the manual operation. The digital display can avoid the indication error, the testing results can be printed out.
Technical Specification
Testing range: 20-88HRA, 20-100HRB, 20-70HC
Testing force: 588.4, 980.7, 1471N
Specimen Max allowed height: 170mm
Pressure head center to wall distance: 130mm
Hardness resolution: 0.1HR
Power supply: AC 220V, 50/60Hz
Overall size: 500 x 250 x 700mm
Weight: approx 75KG
Main accessories
Large platform: 1pc
Diamond cone pressure head:1pc
Small platform: 1pc
1/16”steel ball pressure head: 1pc
Big “V” shape platform: 1pc
Standard Rockwell hardness block: 5pcs
printer: 1set
