Description

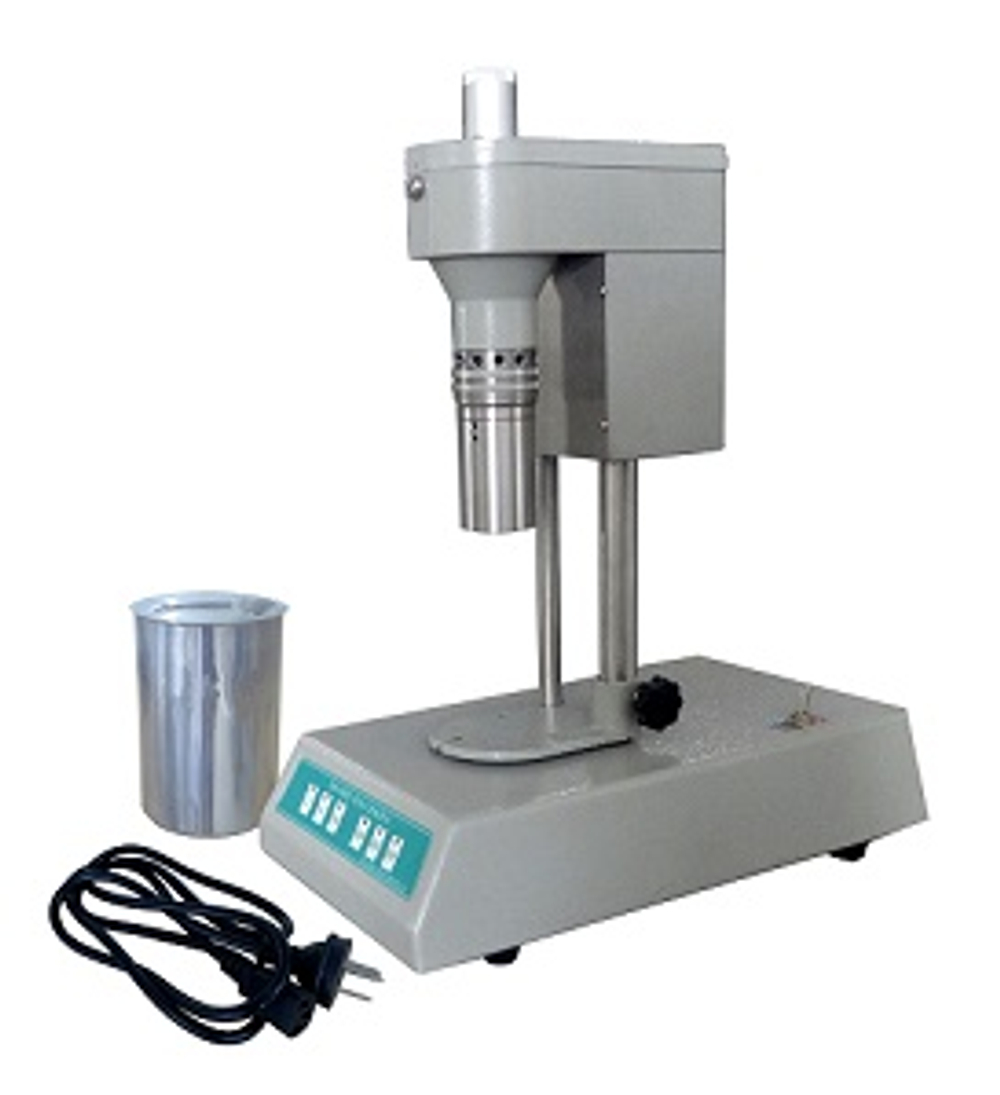

Model: ZNN-D6D
This six speed rotational viscometer can be used for measuring of various kinds of rheological parameter, as well as dynamic and static shear force, liquidity index, consistency index, thus to provide reference for rheological parameter studying. It’s kind of very common drilling fluids test instrument.
Features
Digital display, direct reading, SUS Base, corrosion resistant, easy operation & maintenance
Technical Specifications
| Term | Specifications |
| Power supply | 220V±5% 50Hz |
| Motor power | 40W |
| Motor rotational speed | 800r/min |
| Speed range | 3,6,100,200,300,600r/min |
| Velocity stage | 5,10,170,340,511,1022 S-1 |
| Measuring accuracy | 1~25 mPa·s±1 mPa.s(Newton liquid ) >25 mPa·s ±4% |
| Viscosity measuring range | Newton liquid: 0~300mPa.s(F1 measuring assembly) 0~60mPa.s(F0.2 measuring assembly) Non- Newton liquid:0~150 Mpa.s(F1 measuring assembly) 0~30 mpa.s (F0.2 measuring assembly) shear force: 0~153.3Pa (F1 measuring assembly) 0~30.7Pa (F0.2 measuring assembly) |
