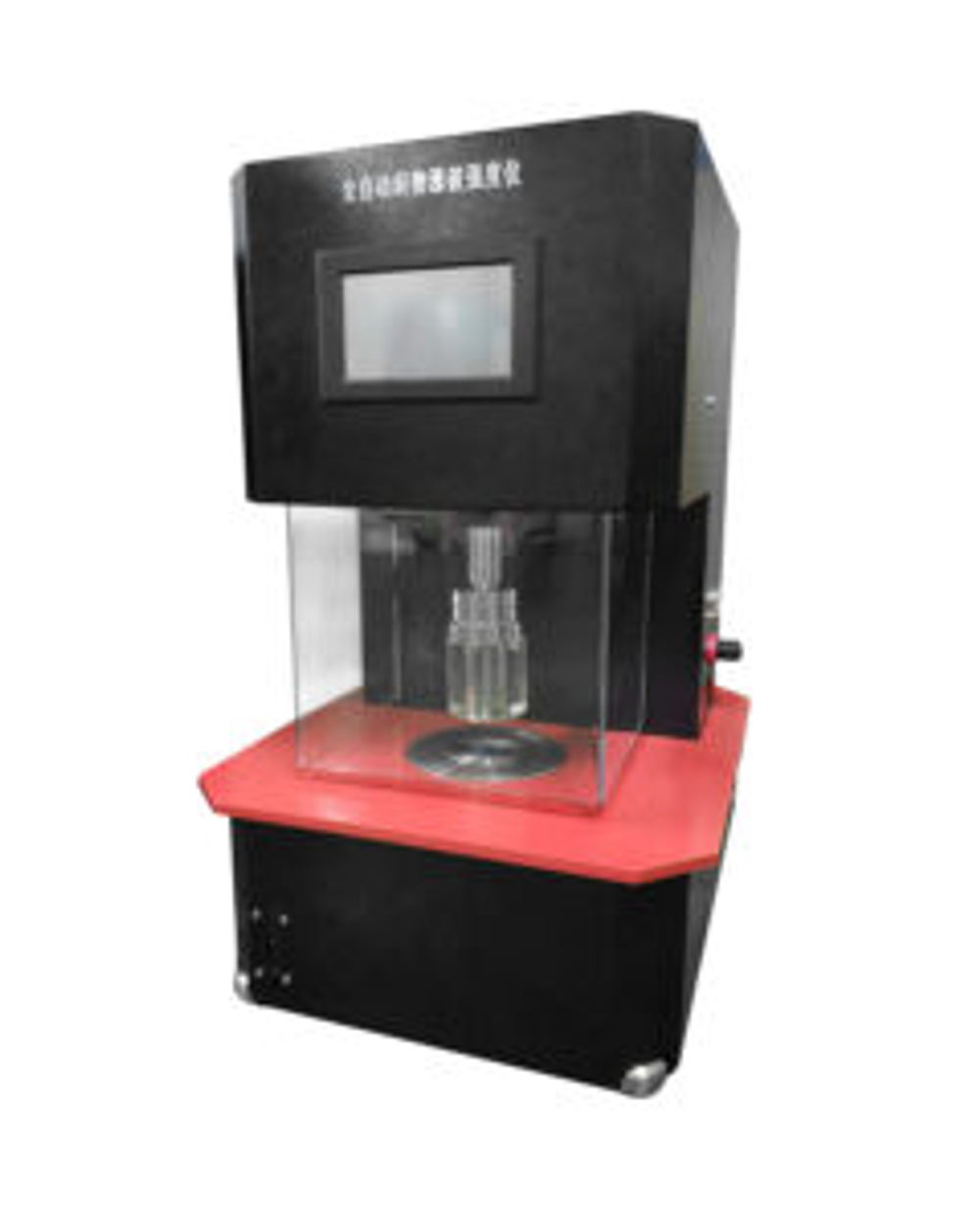

Digital textiles bursting strength testing machine

Model: FZ-032E

Standards compliance

ISO 13938.1, FZ/T 60019,FZ/T 01030,ASTM D3786,BS 4768,WOOLMARK TM 29,WSP 30.1,JIS L 1018.6.17

Description

This machine is used to test the bursting strength of fabrics, geotextiles, geomembranes, and other geosynthetics composite products.

Technical specifications

● Clamp inner diameter: Ф30.5±0.05mm

● Testing area: 7.3 cm²

● Elastic membrane size: Ф80mm

● Testing range: 0～6MPa

● Bursting strength measuring accuracy: ≤±1%

● Expansion ratio measuring range: 0.1～35mm

● Expansion ration resolution: 0.1mm

● Bursting time range: 0.1～99.9s

● Pressure rate: 10ml/min～150ml/min

● Overall size: 710×540×800 mm(L×W×H)

● Power supply: 220V 50Hz 500W

● Weight: 80Kg
