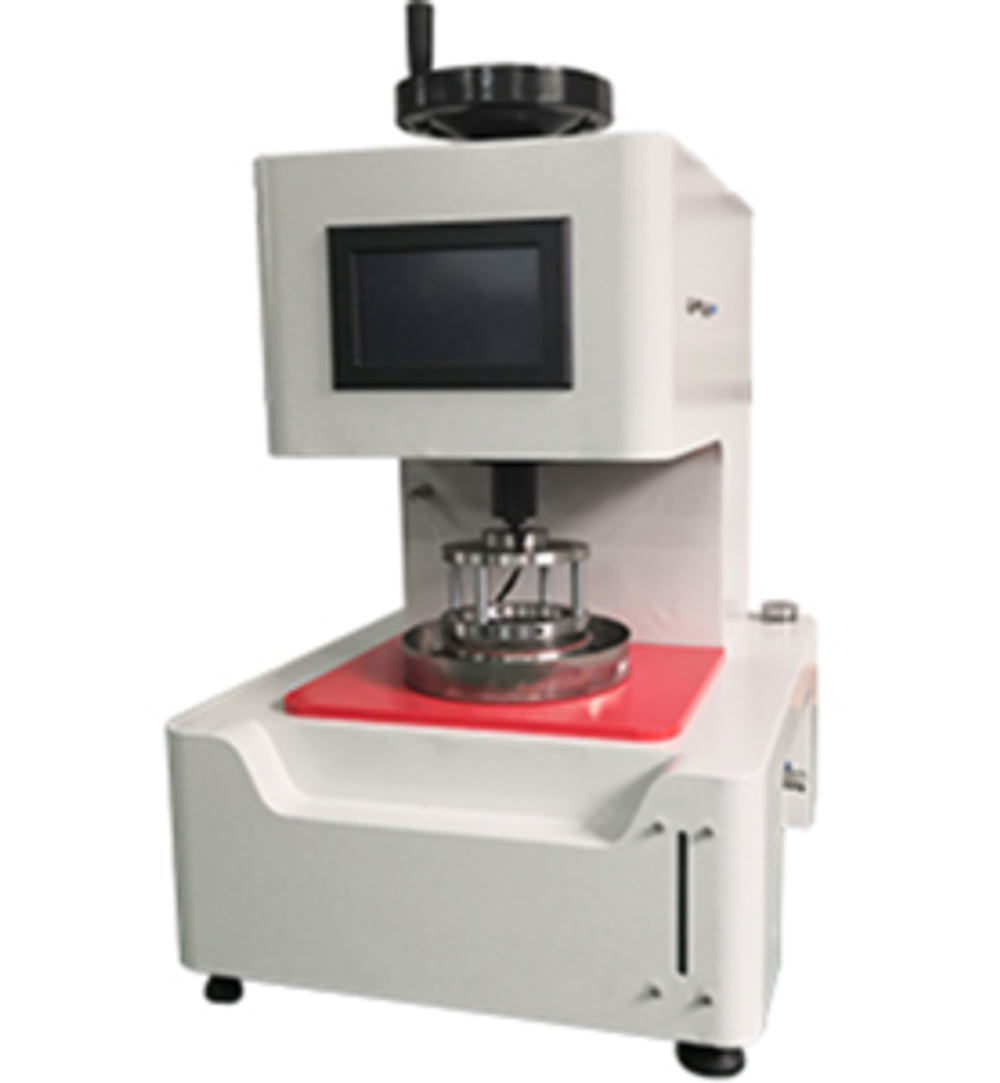

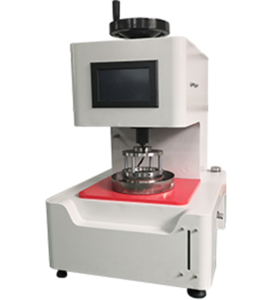

Model: FZ-812D
Description
It is used to test the water permeability resistance of various fabrics (such as non-woven fabrics, protective clothing, surgical clothing, coated cloth, canvas, tent cloth, tarpaulin, rain-proof clothing cloth and geotextile materials) after waterproof treatment. Color screen touch operation, easy to operate. Built-in 4 test modes can adapt to different test standards.
Standards compliance
GB/T4744 FZT01004 AATCC 127 DIN 53886 JIS L1092
Features
1. Micro-Computer control, LCD menu, 5 testing method inside
2. Water tank build-in, unique water pressure rate balance system, accurate and stable rise speed.
Technical specifications
| Model | FZ-812D -5 | FZ-812D -20 |
| Measure range | 0-50KPa | 0-200KPa |
| Measure accuracy | 0.2%FS | 0.2%FS |
| Resolution | 0.01Kpa | 0.01Kpa |
| Water pressure up rate | 1KPa-200KPa freely set, digital setup | 1KPa-200KPa freely set, digital setup |
| Sample clamp area | 100cm2 | 100cm2 |
| Working mode | constant pressure timing, constant pressure timing, constant speed boosting, deflection relaxation and other test modes | constant pressure timing, constant pressure timing, constant speed boosting, deflection relaxation and other test modes |
| Operation display | HD touch color display | HD touch color display |
| Output | configure thermal printer to print test results in real time | configure thermal printer to print test results in real time |
| Power supply | Ac 220V ± 10% 50HZ 100W | Ac 220V ± 10% 50HZ 100W |
| Overall dimensions | 600 × 520 × 890mm | 600 × 520 × 890mm |
