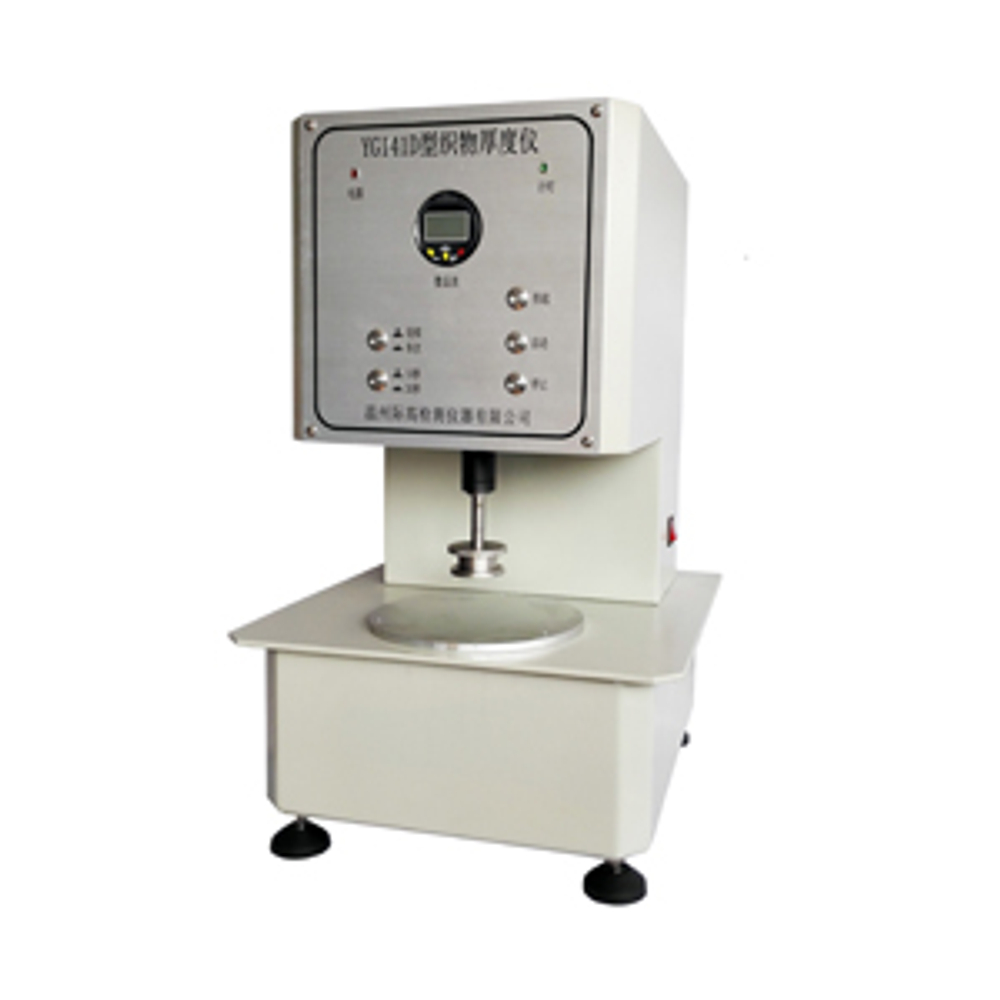

Model: YG-141D
This tester is suitable for thickness measurement of various kinds of fabrics and textiles and other thin materials with uniform thickness.
Features
New machine type, measuring range up to 50mm
Nice appearance, latest design
Technical Specifications
Measuring range: 0-25mm, 0-50mm
Measurement resolution: 0.01mm,0.001mm
Pressuring foot area: 100mm2, 2000 mm2,2500 mm2, 100000mm2
Foot dia.: 11.28, 50.46, 56.42,112.84mm
Pressure mass: 50cn 2pcs, 100cn 2pcs, 200cn 1pc
Foot lower rate: 1.72mm/s
Test mode: single, continuous, jogging test
Alarm function: test over with alarm music
Measuring rate:
When pressurized time set to 10s, approx. 2.1time/min;
When pressurized time set to 30s, approx. 1.2time/min
Working power supply: ac 220v/50hz
Overall dimension: l600*w400*h450mm
Equipment N.W: 30kg
