Model: TZJ-3
Description

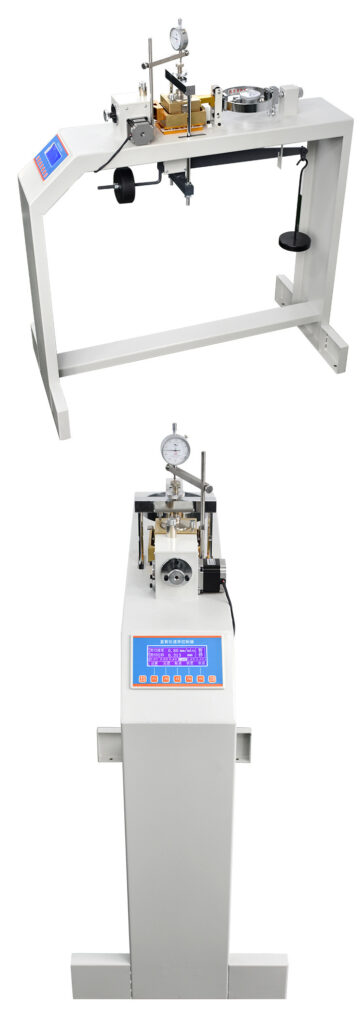

This shear test apparatus is used to test the soil shear strength, it’s operated by manual, The specimens are tested under different vertical pressure and applied shear force, thus to obtain the broken shear force. It’s kind of common soil mechanics testing equipment.
Technical specifications
Vertical loading: 400KPa, 300KPa, 200KPa, 100KPa, 50KPa
Horizontal loading: 1.2KN
Lever ratio: 1:12
Specimen area: 30cm2
Instrument size: 850 x 550 x 1100mm (L x W x H)
Net weight: 35Kg
