Technical Specifications

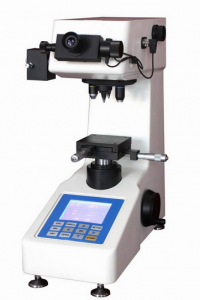

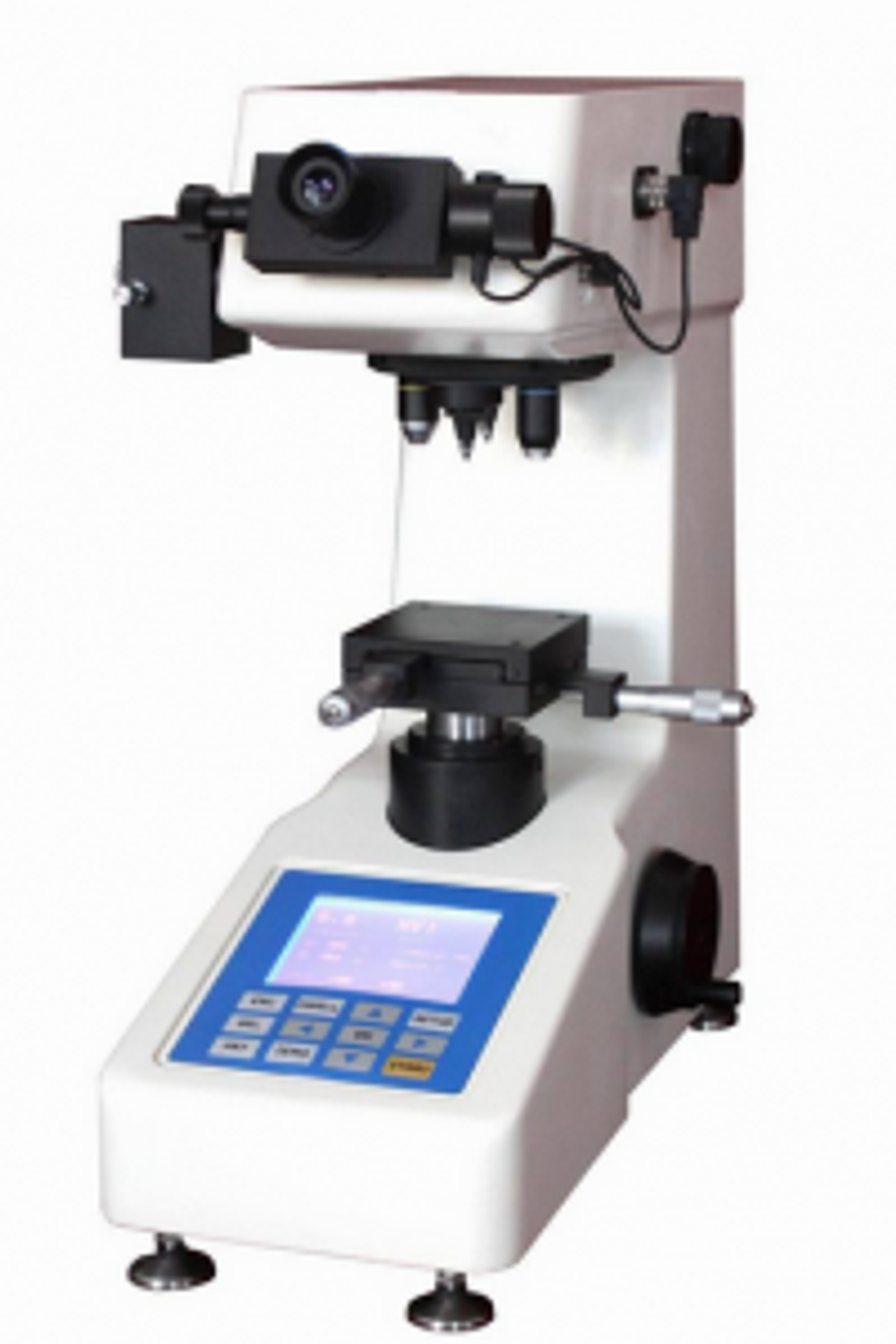

| Model | HVK-1000DT |
| Switch Type of Objective lens and Indenter | Manual Turret |
| Testing Force | 10g (0.098N),25g (0.245N),50g (0.49N),100g (0.98N ), 200g (1.96N),300g (2.94N),500g (4.9N),1000g (9.8N) |
| Scale | HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1,HV2 |
| HK0.01, HK0.025, HK0.05, HK0.1, HK0.2, HK0.3, HK0.5, HK1, HK2 | |
| Min. Measuring Unit | 0.25μm |
| Hardness Value Rang | 1HV-4000HV / 1HK-4000HK |
| Hardness Value of Reading | Digital LCD Screen |
| Total Magnification of Microscope | 100X(For Observation),400X(For Measurement) (Can be extended to 200X or 600X) |
| Loading Method | Automatically(Load, dwell and unload the testing force) |
| Dwell time | 1-99s |
| Specimen Allowing Maximum Height | 85mm |
| Throat Depth | 120mm |
| Instrument size | 490×185×515mm(L×W×H) |
| Instrument weight | 45kg |
| Light Source | LED Cold light source (can be continuous use for 24 hours, servicing life can reach 100,000 hours) |
| Power Supply | 110V/220V + 5%, 50/60 Hz |
| X-Y Testing Table | Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio:0.01mm (X-Y Digital Testing Table with digital LCD Screen for Optional) |
| Data Output | Built-in Printer (Hardness Value, The Max. And Min. Value, Testing times and Average Value) Built-in RS-232 interface |
| Executed Standard | GB/T4340.2 Chinese Standard, JJG151 Inspection Rules |
| Standard Accessories | 1 piece: 10X micrometer eyepiece ; 10X and 40X objective lens; Vickers indenter; X-Y Testing Table; Flat Fixture; Thin Fixture, Small Parts Fixture; Water level; Power cable; Dust cover; Instruction Book; Hardness Conversion Tables; Certificate of quality; Warranty Card; Accessory case 2 pieces: Standard block of hardness 4 pieces: horizontal adjusting screw |
| Optional Purchase Accessories | Image analysis software; Metallographic structure equipment; Noop Indentor; Knoop hardness block; 15X micrometer eyepiece; 2.5X Objective lens; 20X Objective lens; 60X Objective lens |
