Model: DPP-2000N
Standards: GB/T 11836-99, GB/T 16752-2010
Description

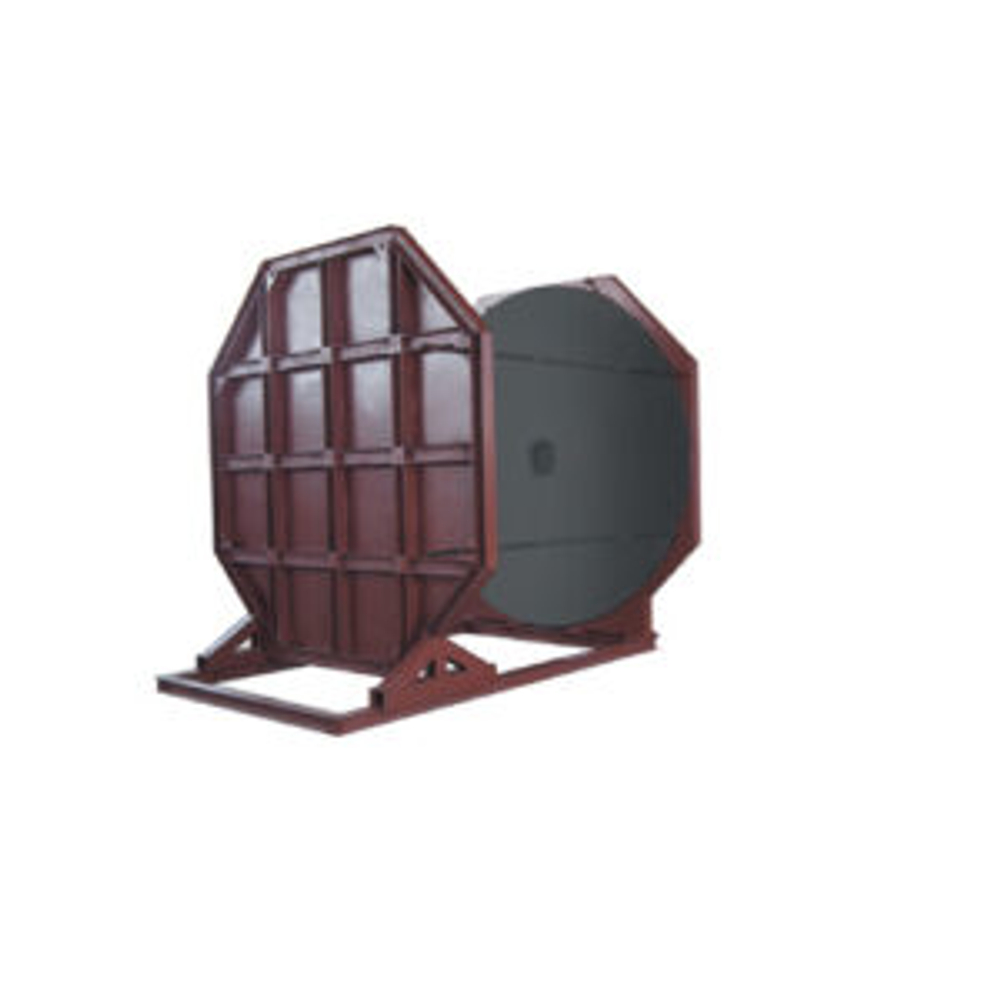

The drain pipe internal pressure tester is mainly used for internal pressure test of drain pipe with concrete, rebar concrete, horizontal structure, it can be customized made as per customer’s requirements. It’s kind of professional material testing machine.
Technical Specifications
| Pressure display | Pressure dial gauge |
| Dial gauge resolution | 0.005MPa |
| Water feeding mode | Water pump with lift range >16m |
| Max pressure | 0.16MPa |
| Fixing mode | screw fixing |
| Sealing mode | rubber plate sealing(special sealing) |
| Overall size | 4000×2950×2950mm |
| Net weight | 2900kg |
| Suitable drain pipe size | ≤Φ2000mm（Φ2000-3000mm customized） |
| Pressure applying sequency
| Firstly pad the drain pipe, clamp with platen, open the water pump to pressuring till specified pressure, drainage shall has the automatic water draw function to draw the water back to the water tank
|
