Description

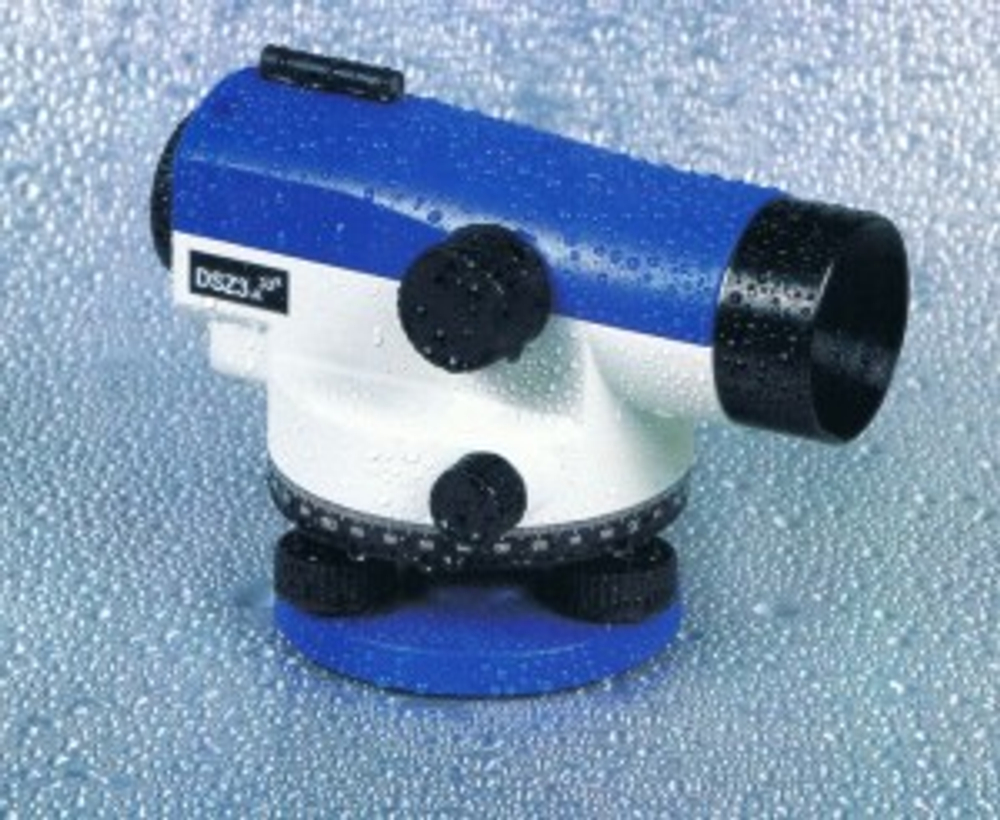

The DSZ3 automatic level has automatic settlement unit, easy operation, light in weight, compact structure. The DSZ3 automatic level is widely used in construction surveying, large machine installation etc.
Technical specifications
| Imaging | Erect image |
| Rate | 32X |
| Objective diameter | 38mm |
| Field angle | 1°20′ |
| Minimum sighting distance | 0.3m |
| Multiplying constant | 100 |
| Addition constant | 0 |
| Water proof | yes |
| Compensator operation range | ±15′ |
| Compensator Settlement accuracy | ±0.3″ |
| Bubble sensitivity accuracy | 8′／2mm |
| Dial gauge division value | 1°or 1gon |
| Measuring deviation per kilometer | 2.0mm |
| Net weight | 1.8Kg |
| Tripod junction size | M16 or 5/8″ |
