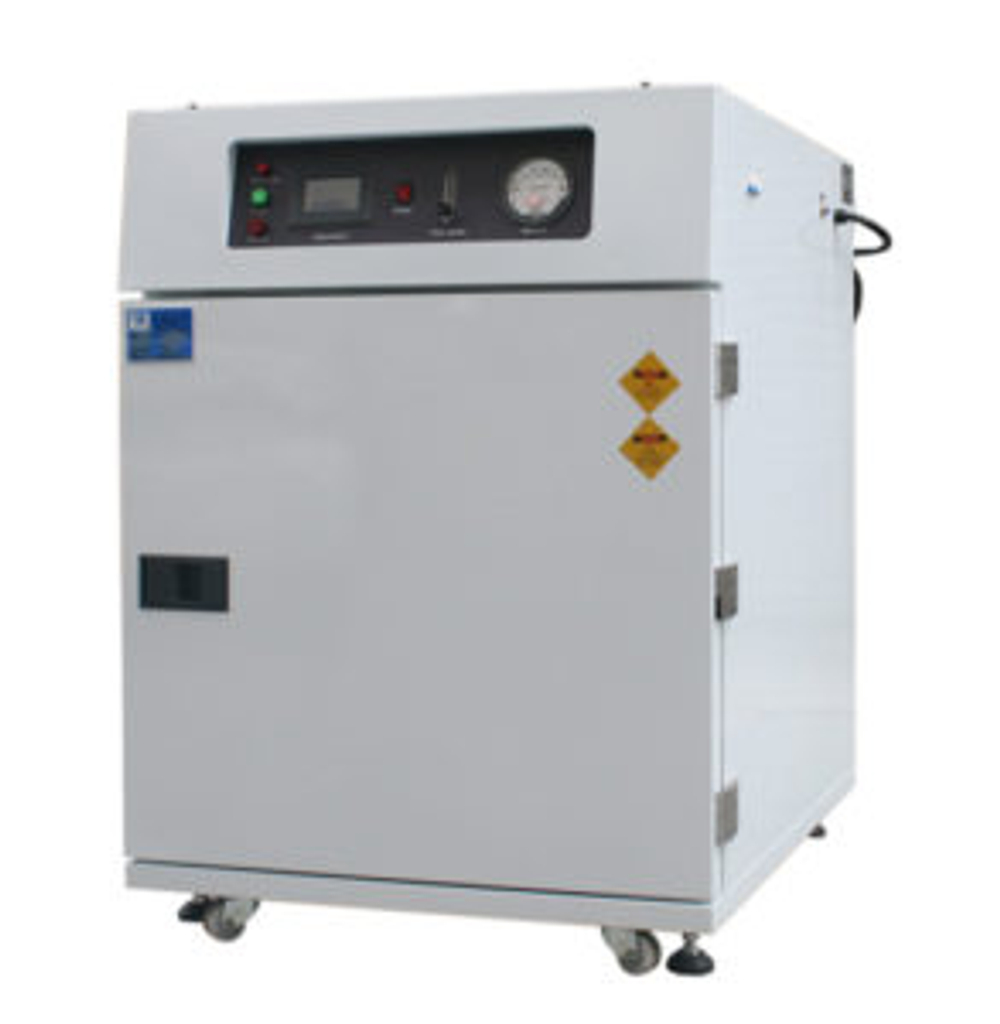

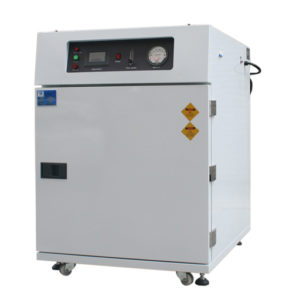

The dust free oven is widely for drying of electronic products.
Features
Digital display controller or touch screen programmable controller
Hot wind circulation heating mode, fast temperature raise
Equipped with high efficiency filter
MCU precise temperature controller, easy parameters setup, sync display the setup temperature and measured humidity
Liquid swelling type over temperature power failure protection device, guarantee the safety of test products
Temperature compensation easily to reduce the temperature deviation
Rational structure, compact size and less spacing
Glaze door easy for observation
Timing thermostatic function
Specifications
| Model | DHGW-072 | DHGW-270 | DHGW-480 | DHGW-600 | DHGW-720 | DHGW-1000 |
| Inner size (cm) W×H×D | 40×45×40 | 60×90×50 | 80×100×60 | 100×100×60 | 100×120×60 | 100×100×100 |
| Overall size (cm) W×H×D | 72×116×56 | 93×163×67 | 110×172×77 | 130×172×77 | 116×170×116 | 116×150×166 |
| Temperature range | RT+25℃～200℃（300℃） | |||||
| Temperature fluctuation | ±0.3℃ | |||||
| Temperature uniformity | ±1%℃ | |||||
| Temperature resolution | 0.1℃ | |||||
| Dust protection degree | 100，1000 | |||||
| Temperature rise time | 30mins | |||||
| Enclosure material | Cold rolled plate + baking paint | |||||
| Liner material | SUS#201（when >200℃ SUS#304 used） | |||||
| Filter material | HEPA | |||||
| Heat insulation material | Glaze wool | |||||
| Wind circulation system | Centrifugal fan | |||||
| Heater | SUS# made, high speed | |||||
| Controller | Digital display, keypress | |||||
| Accessories | Control status indicator, shelve(2pcs, height adjustable) | |||||
| Safety device | Phase protection, over temperature, over current, overload | |||||
| Power supply | AC 3Ψ380V 60/50Hz | |||||
| Customized | Yes | |||||
