This instrument is an instrument used to calculate the elastic modulus of an object by measuring its resonant frequency. It can measure ceramic, graphite, glass, plastic, metal materials, etc. The instrument adopts imported data acquisition control card, and uses computer control to realize the automation of the whole process of testing, calculation and reporting.
Standards
GB/T3074.2-2008 “Method for Determination of Elastic Modulus of Graphite Electrodes”
GB/T5594 Young’s modulus of elasticity test method
GB/T 2105, GB22315-2008 Test method for elastic modulus of metallic materials, etc.
Specification
| Frequency measurement range | 100Hz ~ 50 kHz |
| Frequency resolution | 0.01Hz |
| Measurement error | <0.5% |
| Test temperature | equipped with a sample ambient temperature controller, which can be measured at various temperatures. (can be ordered according to user requirements) |
| Environmental condition | 0 ~ 40 ℃, relative humidity <90% |
| Power supply | AC220V±10%, 50Hz |
Configuration list

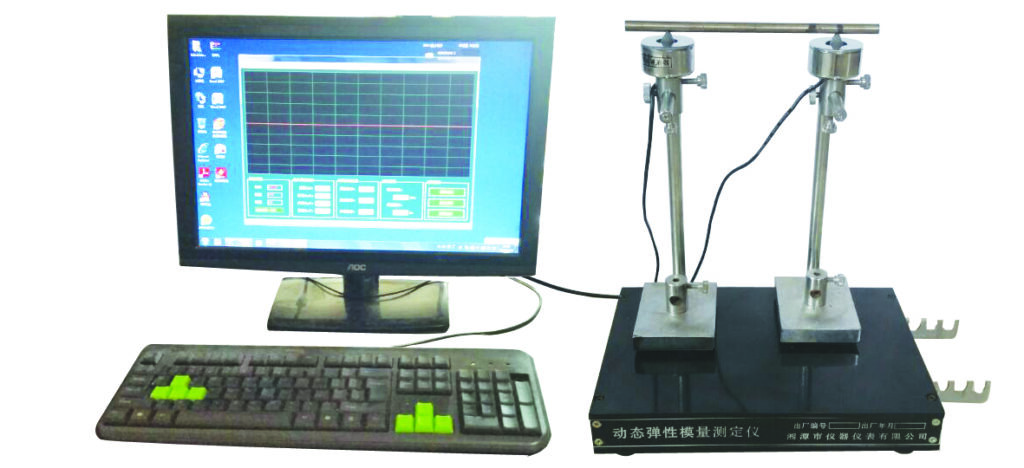

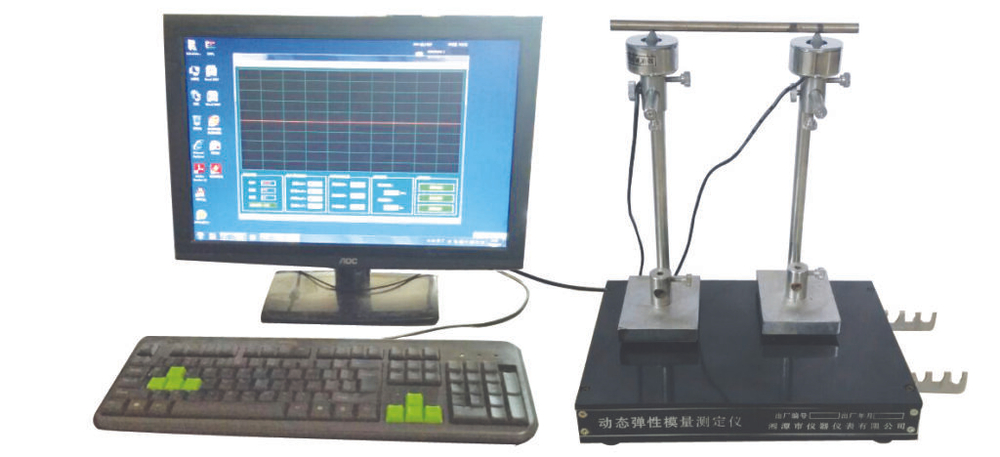

DTM-II test host (including imported data acquisition card), one set of exciter and receiver, one set of test frame and connecting line, one set of software, one set of desktop computer.
Note: There are support type or hanging type to choose from.
