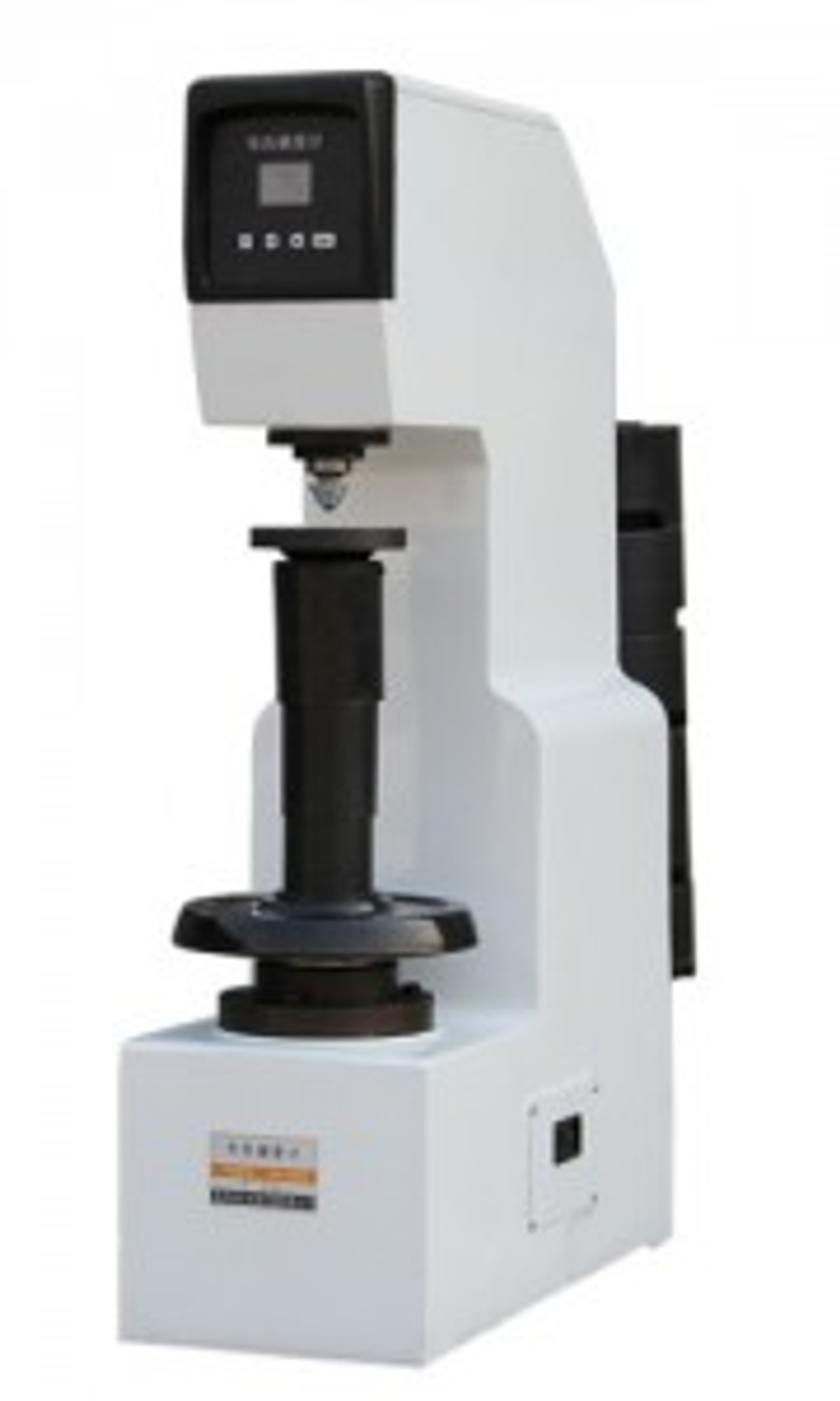

Model: HB-3000B
Application
Castings, annealed steel, normalized steel, ferrous metal, soft alloy. suitable for parallel or curved surface measurement.
Features
Solid structure, good rigidness, high accuracy, durable in use
Electric change-over switch, large power solid relay,
High accuracy readout microscope system
Good environment adaptability
Good structure design, less noise, low error rate
Meet GB/T231.2, ISO6506-2,ASTM E10 standards
Technical Specifications
| Measuring range | 8-650HBW |
| Test force | 1838.8,2415.8,7355.3,9807,29421N(187.5,250,750,1000, 3000kgf) |
| Max allowed height | 230mm |
| Pressure head to the wall distance | 120mm |
| Overall size | 700*268*842mm |
| Power supply | AC380/220V, 50/60Hz |
| Net weight | 210kg |
Standard Configuration
| Large platform: 1pc, small platform: 1pc, V platform: 1pc |
| Tungsten carbide steel ball press head: Φ2.5, Φ5, Φ10 one each |
| Standard Brinell hardness block: 2pcs |
| 20 times readout microscope: 1pc |
