Model: Q-100B
Description

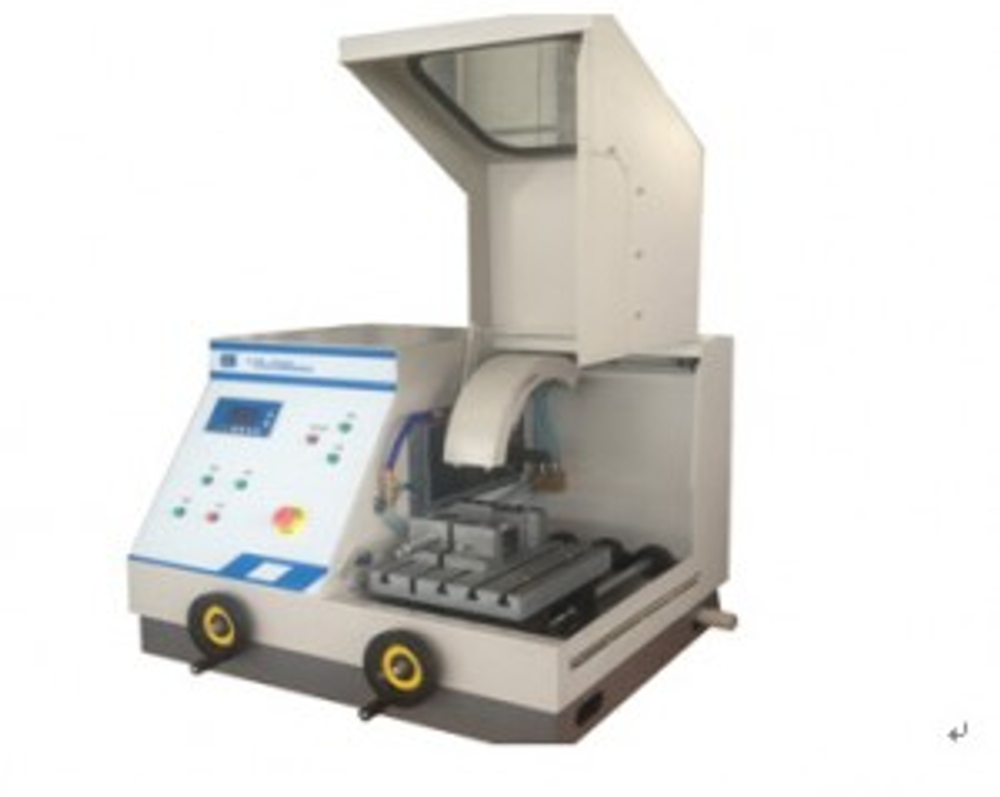

This model metallographic cutting machine is comprised of body, electric control box, cutting room, motor, cooling system, it’s kind of common metallographic testing machine.
Technical Specifications
| Power Supply | 3phase, 4wire,380V,50hz |
| Main Shaft Rotation Speed | 2100rpm |
| Grinding Wheel Size | 350mm×2.5mm×32mm |
| Max Cutting Size | Φ100mm |
| Max Cutting Volume | 100mm×200mm |
| Motor | YS90l2-2 3kw |
| Cutting Table Size | 310×280mm |
| Overall Dimension | 930×990×1230mm |
