Standards: JB/T7409

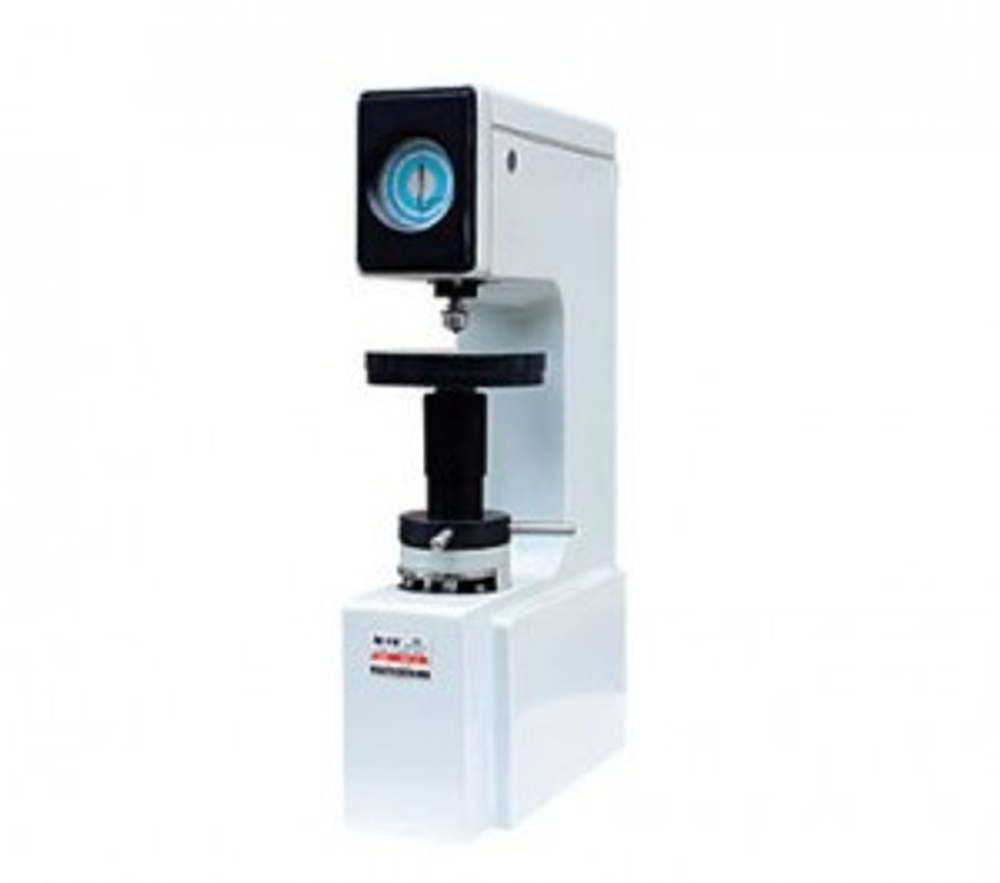

Model: XHRD-150
Description
The plastic Rockwell durometer can be used to test the hardness of plastic, composite material and multi kinds of friction material, soft metal, non-metal soft material. It’s kind of common Rockwell hardness tester.
Features
Stable structure, good rigidness, accurate, reliable, durable, high test efficiency;
Highly automated, avoid human operation error;
Direct data read of HRE,HRL, HRM, HRR
Technical specifications
Test range: 70-100HRE, 50-115HRZ, 50-115HRM, 50-115HR
Test power: 588.4, 980.7, 1471N(60,100,150Kgf)
Specimen allowed Max height:150mm
Distance between pressure center and machine wall: 135mm
Hardness resolution: 0.5HR
Power supply: AC 220V, 50Hz
Overall size: 505 x 240 x 700mm
Weight: approx 70kg
Main accessories
Big test platform: 1pc,
Steel ball pressure head: 1/8”, 1/4”, 1/2”one for each
Small test platform: 1pc
Standard Rockwell hardness block: 4pcs
V type test platform: 1pc
