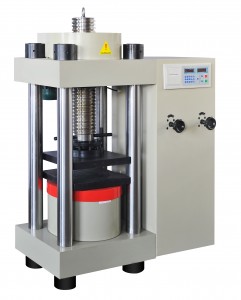

Model: CTM-2000/3000D
Description
This machine is mainly used for compression strength test of brick, cement mortar and other construction materials, also for other material mechanical test.
Technical specification
| Term | CTM-3000D | CTM-2000D |
| Capacity range(KN) | 0-1000 | 0-2000 |
| Indication value relative error | ±1% | ±1% |
| Bearing platen size(mm) | 340*340 | 260*320 |
| Upper lower platens Max. distance(mm) | 320 | 320 |
| Piston Max. stroke(mm) | 50 | 50 |
| Piston dia.(mm) | Φ310 | φ250 |
| Hydraulic pump rated pressure(Mpa) | 40 | 40 |
| Power supply | 220/380V, 50Hz | 220/380V, 50Hz |
| Power | 0.75W | 0.75W |
| Overall size(mm) | 1160*700*1610 | 1100*700*1520 |
| Net weight(kg) | Approx 1800 | Approx 1000 |
