Model: TWCX-2
Description

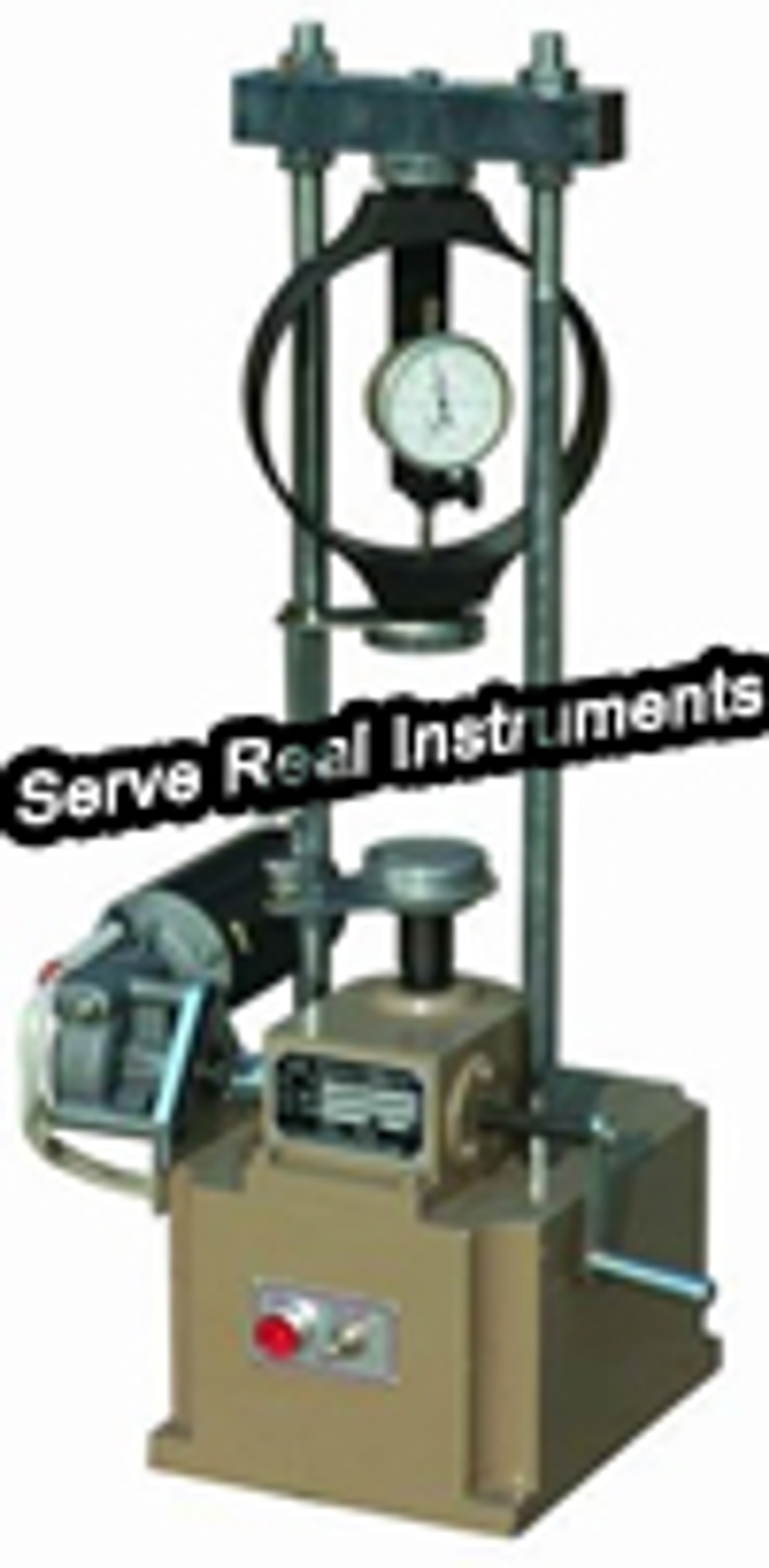

The limestone unconfined compression test machine is used to determine the limestone mechanical characteristics, it has manual and electro-driven type. This machine is comprised of base, jack, bearing plate, proving ring, handle, dial gauge, frame.
Technical parameters
1. Max loading: 5KN
2. Motor power: AC 220V, 50Hz, 170W
3. Electric Lifting speed: 3mm/min
4. Manual lifting speed: 18 circles/1mm
5. Screw rod plate diameter: Ф52mm
6. Screw rod move distance: 50mm
Completer with 3pcs dial gauges( 0-10mm/0.01mm 1pc, 0-30mm/0.01mm 2pcs), 1pc proving ring.
