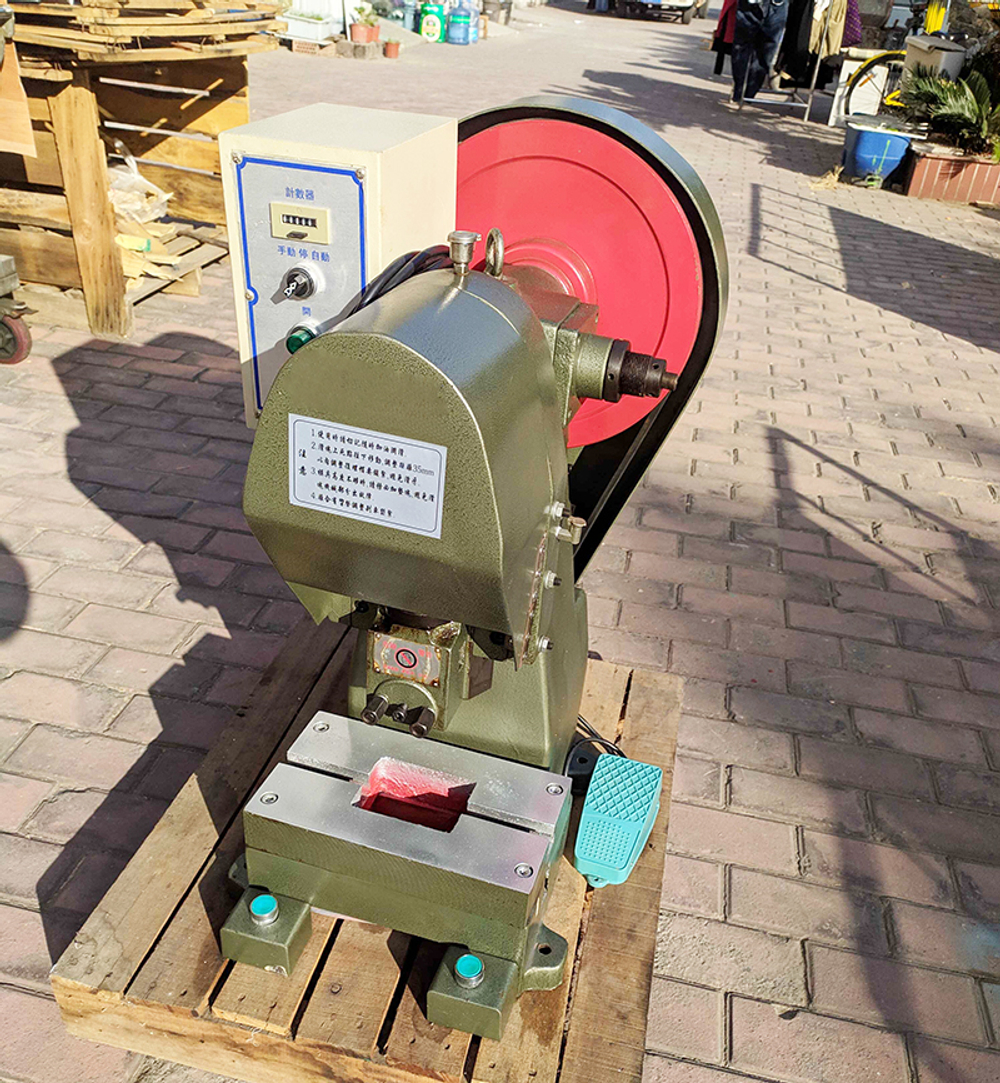

This electrical pressing machine is suitable for the manufacturing or assembly of precision parts such as electronics, appliances, terminals, switches, plugs, antennas, watches, umbrellas, plastics, telephone lines, computer lines, leather bags, belts, light strings, photographic devices, etc.
Characteristics of electrical pressing machine
Use a roller clutch for accurate positioning. Single and continuous flushing are available for safe operation. The design is exquisite and does not take up space. Smooth operation and low noise. Easy to adjust and maintain.
Local parameters; The unified upper mold hole size is 25.4, and an optional photoelectric protection device can be installed.
Manual press operation
Footer operation optional
Specifications of electrical pressing machine
| Model | DPA-2T | DPA-3T | DPA-5T | DPA-10T |
| Max force | 20kn | 30kn | 50kn | 100kn |
| Adjustable stroke | 40 mm | 40 mm | 40 mm | |
| Continuous work frequency | 240 | 240 | 240 | 240 |
| Jog pressure frequency | 150 | 150 | 150 | 150 |
| Slider hole diameter | 1”×40mm | 1”×45mm | 1”×45mm | 11/2”×55mm |
| Countertop aperture | 75×75mm | 75×110mm | 80×130mm | 90×180mm |
| Power | 1/4HP×4P | 1/2HP×4P | 1HP×4P | 1HP×4P |
| Machine weight | 80Kg | 140Kg | 180Kg | 600Kg |
| Overall dimensions | 440×450×590 | 400×590×760 | 480×620×820 | 660×780×1560 |
| Work bench size mm | 230×155×165 | 300×175×185 | 300×190×200 | 370×260×255 |
