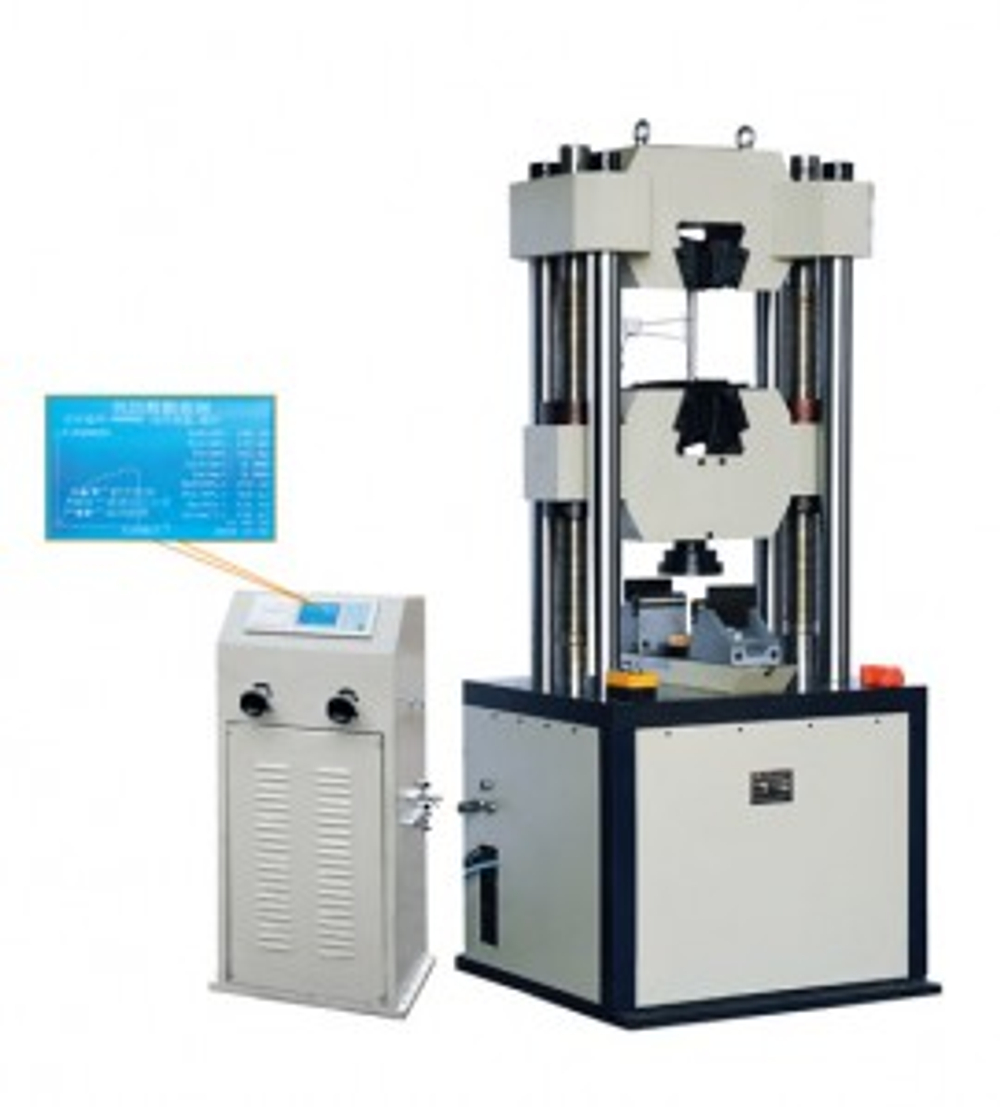

UTM-100/300/600/1000B
Description
This machine is mainly used to perform tension, compression, flexural test for metal materials under static force, also can be used for construction materials mechanical test. Also equips cold bending accessories for metal process test.
Technical specifications
| Model | UTM-100B | UTM -300B | UTM -600B | UTM -600B | UTM -1000B |
| Max load | 100kN | 300kN | 600kN | 600kN | 1000kN |
| Load measuring range | 4%~100%F.S | ||||
| Testing load indicating value relative error | ≤±1% | ||||
| Testing load resolution | 0.01kN | ||||
| Tension test space(mm) | 550 | 550 | 650 | 650 | 750 |
| Compression test space(mm) | 380 | 380 | 380 | 380 | 460 |
| Clamping mode | Manual | Manual | Manual/Automatic | Automatic | Automatic |
| Round sample clamping diameter(mm) | Φ6~26 | Φ6~26 | Φ13~40 | Φ13~40 | Φ13~40 |
| Flat sample clamping thickness(mm) | 0~15 | 0~15(15~30optional) | |||
| Flat sample max clamping width(mm) | 70 | 70 | 75 | 75 | 75 |
| Shear test sample diameter(mm) | 10 | ||||
| Upper lower platen size(mm) | 204×204 | ||||
| Supporting points max distance(mm) | 450 | ||||
| Oil pump motor power(kw) | 1.1 | ||||
| Beam lifting motor power(kw) | 0.75 | ||||
| Net weight(kg) | 1600 | 1800 | 2000 | 2500 | 3200 |
