Model: WNE-1B
Standards: ASTM D1665, GB/T266, JTG E20-11 T0622

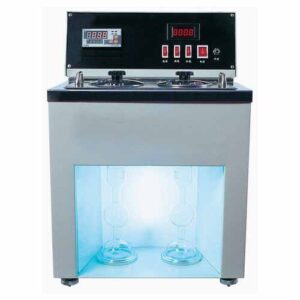

This Engler can be used to determine the viscosity of bitumen and petroleum products.
Features
Bench type, integration structure, the inner and outer pan are both made of stainless steel, special treatment with inner of inner pan.
Flow time digital display, can perform 2 sample sync test
Digital PID mode temperature controller, easy parameters setup, high temperature accuracy
Technical specifications
Power supply: AC220V±10%, 50Hz
Standard water flow time: (51±1)s
Measuring temperature: (0~100)℃
Temperature accuracy: ±0.1℃
Engler thermometer: GB514standard
Receiving flask volume: (100±0.2)ml
Inner pan: stainless steel
Time setup: max 999.9s
Timing mode: LED electric timing
Heating power: 700W
Ambient condition: (-10~+40)℃, relative humidity ≤85%
Total power: <800W
Overall dimension: l430mm×w410mm×h620mm
Standard configuration
| No. | Item | Qty |
| 1 | Main unit | 1set |
| 2 | Temperature sensor | 1pc |
| 3 | Receiving flask （100ml） | 2pcs |
| 4 | Mercury thermometer (0~50)℃, graduation 0.1℃ | 1pc |
| 5 | thermometer (0~100)℃, graduation 1.0℃ | 1pc |
| 6 | Soft wooden stopper | 2pcs |
| 7 | Fuse 10A(φ5×20) | 2pcs |
| 8 | 1#Thermometer plugin | 2pcs |
