Model: FZ-2594
Test standard: ASTM D2594
Description

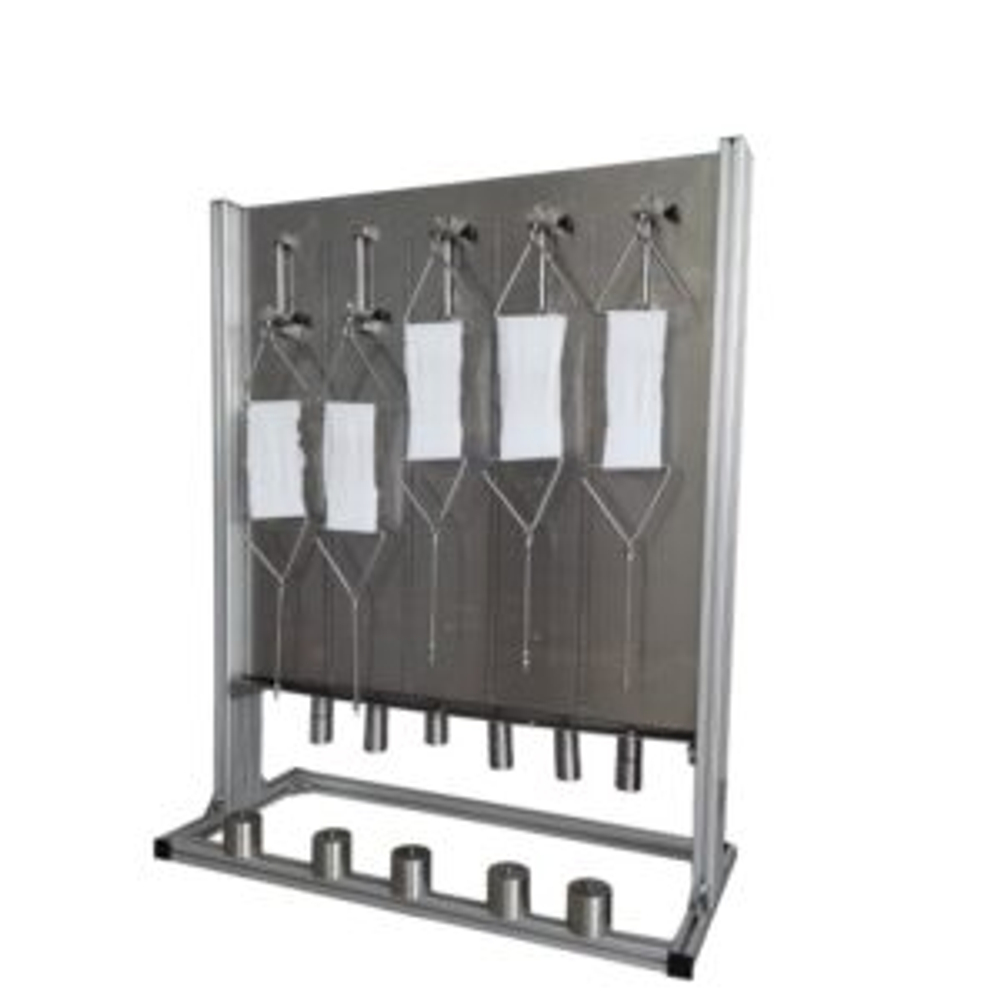

This Tester is used to test the Stretch and Recovery performance of elastic fabrics, the main structure is made of Aviation aluminum, stainless steel clamps, SUS 304 weights, it features compact structure, stable performance.
It can perform constant elongation test, constant load test, flexible sample clamp, equipped with constant elongation limit device, can stretch to any length then fix, thus for test different samples.
Technical specifications
Test station: 5set
Machine frame material: aluminum alloy
Clamp set material: stainless steel
Weights load: 5 pound /2.27kg, 10 pound / 4.54kg
Effective clamp width: ≥135mm
Clamp set hook number: 10 pcs
Machine overall dim.:1100*500*1350mm
Packing dim.: 1200*600*1450mm
Net weight: 60kg
