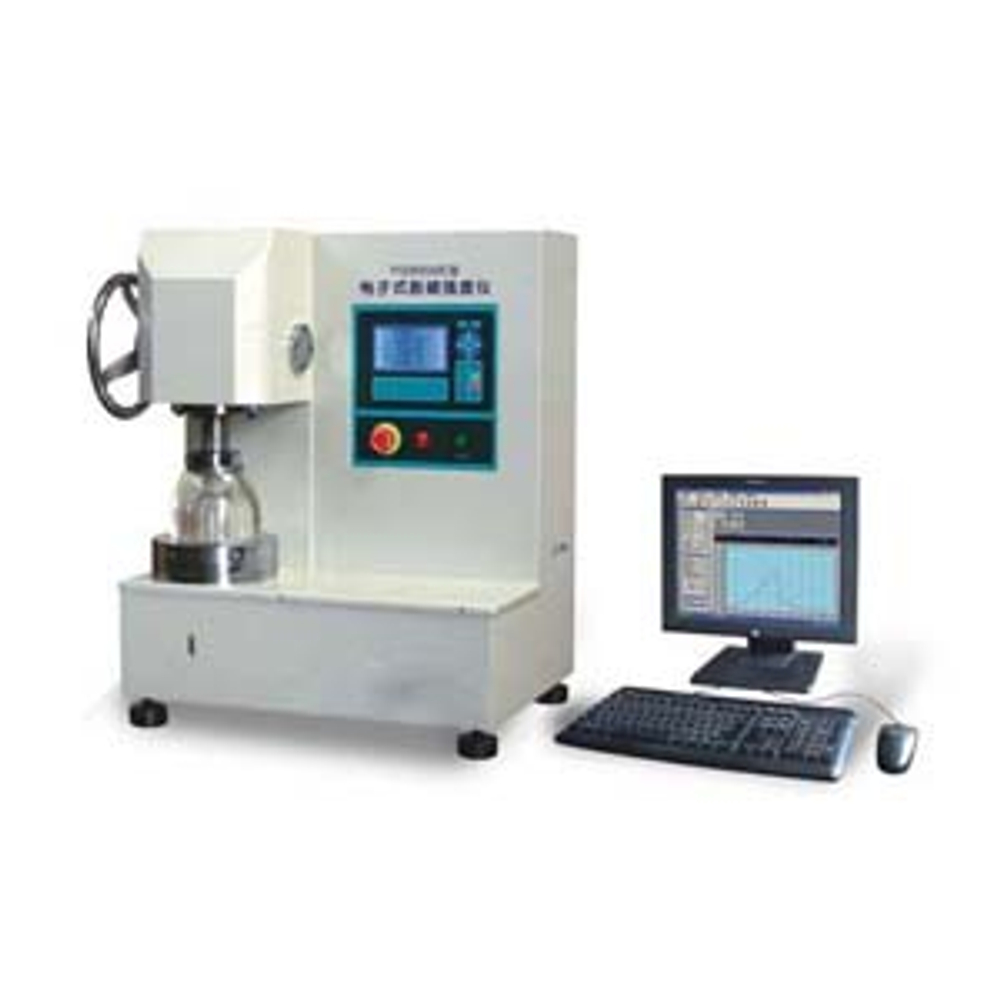

Fabric/Textiles Bursting strength tester

Model: FBS-32E

Standards: GB/T7742 , FZ/T60019, ISO2960, ASTMD3786

Applications

The fabric bursting strength tester is used to test the expansionary force and expansionary ratio of various kinds of fabrics, non-woven fabrics, leather when they are suffering stress from axial and longitudinal direction.

Specifications

Measuring range: 0-2 Mpa / 0-10Mpa

Min resolution: 0.002Mpa

Test area: 50cm²(Φ79.8mm),7.3cm²(Φ30.5mm)

Elastic membrane thickness: ≤2mm

Max expansionary ratio: 70±0.02mm

Max bursting time: 99.9±0.1S

Pressurization rate: 100 -500cm2/min

Output :print, display, PC communication

Power supply: AC220V, 50Hz 800W

Overall dimension: 620×400×530mm

Net weight: 300k
