Model: LCT-1.5W
Description

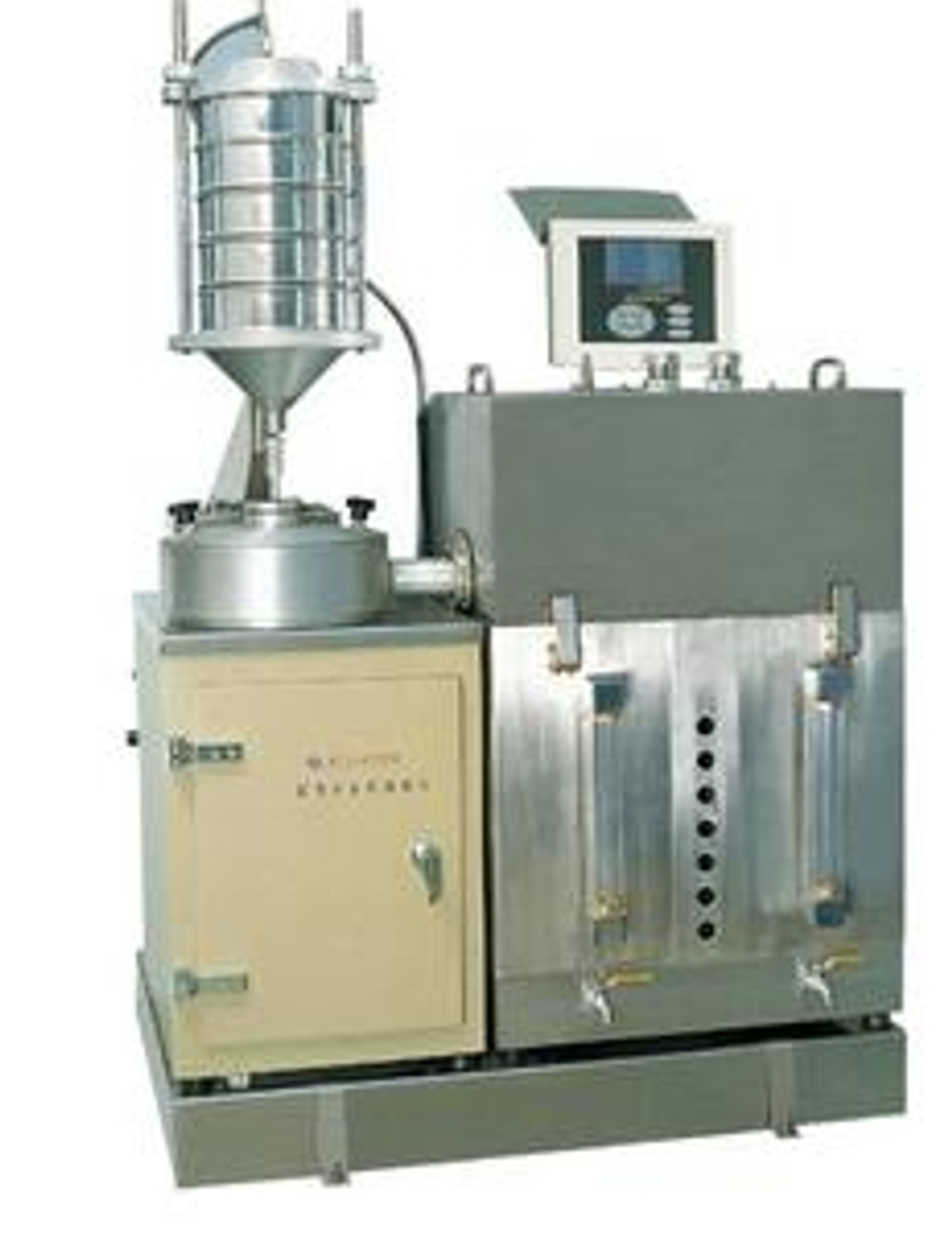

This centrifugal extraction apparatus is used to extract the asphalt from the asphalt mixture by centrifugal force. It’s designed & made as per the API & ASTM standards.
Features
It’s a full-automatic control asphalt mixture testing machine, it’s of floor type structure.
The screen will display the parameter setting menu, running status.
This apparatus integrates the asphalt extraction and solvent recovery ,thus can use the solvent in close-loop, the high-speed-low speed-high speed design make more safe fine mineral powder collection, and achieves more reliable testing results.
Technical Specifications
Capacity: 1000-1500g
Extraction accuracy: ≤0.1%
Extraction time: 20-40times/min
Extraction rotation speed: two steps, 5500r/min,11000r/min;
Working ambient temperature: (5~40)℃，relative temperature≤80%
Power supply voltage: AC 380V±10V, 50Hz；
Total power: ≤ 5kw
Cooling water pressure: ≮2nar
Total weight: 300kg
Overall size: 1400mm×800mm×1600mm
