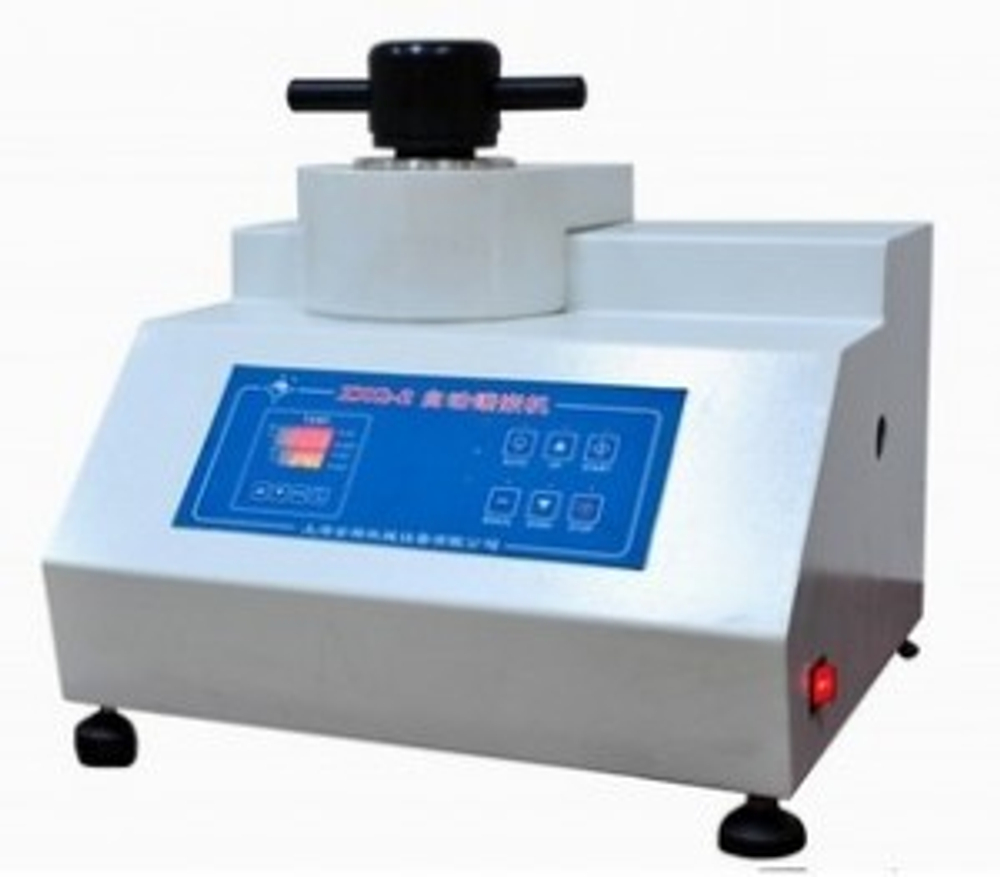

Model: ZXQ-5
Description
The pointing machine is used to make the specimen reach the required dimension or shape thus for the grinding/polishing process, it’s kind of necessary equipment for metallographic laboratory. This model has water cooling function, suitable for thermosetting and thermoplastic pointing, 4 different size module selectable, can press two specimens at a same time.
Technical Specifications
| Module size | φ25mm,φ30mm,φ40mm,φ50mm |
| Power supply | AC 220V 50HZ |
| Max power consumption | 1600W |
| System pressure setting range | 0~2mpa（corresponsive specimen-made pressure range:0~72mpa） |
| Temperature set range | 0~300℃ |
| Thermo insulation set range | 0~99mins99s |
| Overall dimension | 615×510×500mm |
| Net weight | 110KG |
| Cooling mode | Water cool |
