Description

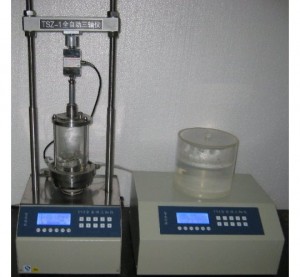

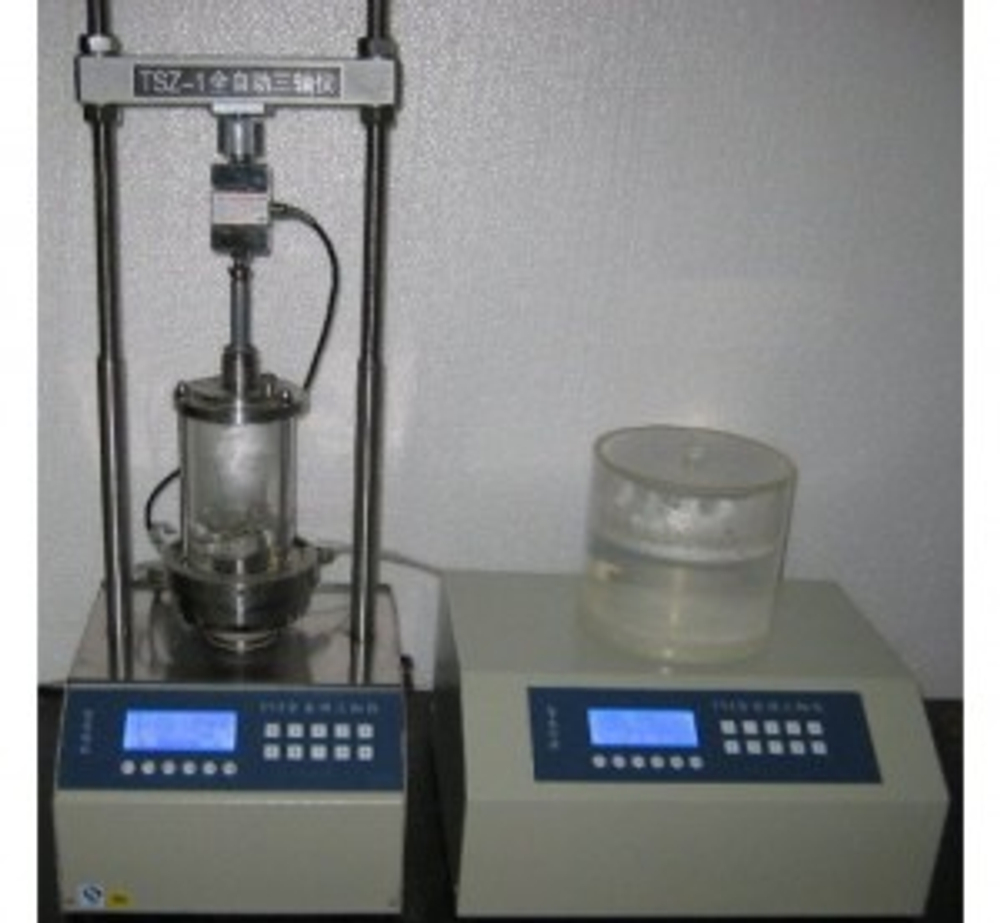

The full automatic series triaxial test apparatus adding a DAQ system based on the TSZ-B series, it’s kind of advanced soil mechanical testing instrument.
Technical specifications
| Specification | TSZ-C1 | TSZ-C2 | TSZ-C6 |
| Specimen size | Φ39.1 x 80mm | Φ39.1 x 80mm, Φ61.8mm x 125mm | Φ39.1 x 80mm, Φ61.8 x 125mm, Φ101 x 200mm |
| Axial Loading | Max. 10KN | Max. 30KN | Max. 60KN |
| Strain-controlled rate | 0.0001mm/min-2.4mm/min 0.0001mm/min-4.8mm/min stepless regulation | 0.0001mm/min-2.4mm/min 0.0001mm/min-4.8mm/min stepless regulation | 0.0001mm/min-2.4mm/min, 0.0001mm/min-4.8mm/min stepless regulation |
| Working table travel | Max. 50mm | 0-90mm | 0-100mm |
| Confining pressure | 0-2MPa | 0-2MPa | 0-2MPa |
| Back pressure | 0-2MPa | 0-2MPa | 0-2MPa |
| Pore pressure | 0-2MPa | 0-2MPa | 0-2MPa |
| Volume change | 0-50ml/0.1ml | 0-50ml/0.1ml | 0-100ml/0.2ml |
| Axial displacement | 0-30mm | 0-30mm | 0-30mm |
| Power supply | AC 220V±10% 50Hz | AC 220V±10% 50Hz | AC 220V±10% 50Hz |
| Size | 350 x 300 x 1100mm, 500 x 500 x 925mm | 500 x 430 x 1200m 500 x 500 x 925mm | 650 x 530 x 1200m 500 x 500 x 925mm |
| Net Weight | 170Kg | 175kg | 240kg |
