Model: HZ-20/20A
Application

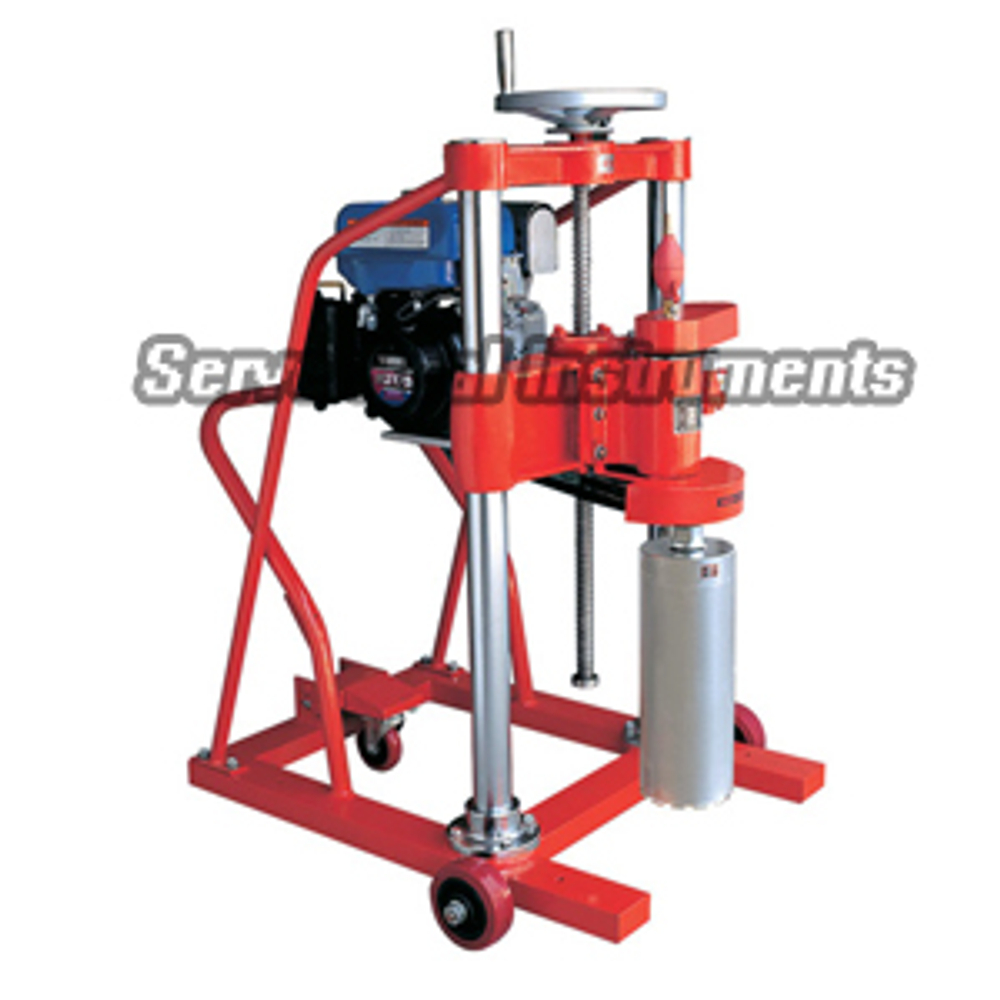

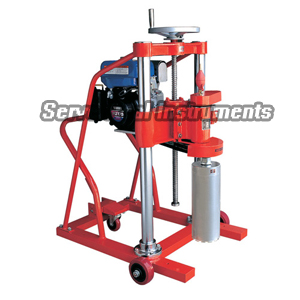

The gasoline driven core drilling machine is mainly used in two aspects, first is horizontal hole drilling, suitable for road/track spike installation, road pile installation, bridge drilling hole, pile foundation drilling; the second is coring, coring road concrete sample for test. It’s kind of a very common road and building equipment.
Technical Specifications
| Term | HZ-20 | HZ-20A |
| Max. drilling dia(mm) | Φ200 | Φ200 |
| Max. drilling depth(mm) | 400 | 700 |
| Motor power | 5.5HP | 5.5HP |
| Start mode | Manual | Manual |
| Main shaft rotation speed | 1100-1500r/min | 1100-1500r/min |
| Net weight | 115KG | 115KG |
| Overall size | 1060*870*1300mm | 1060*870*1400mm |
