Model: HZ-20M
Description

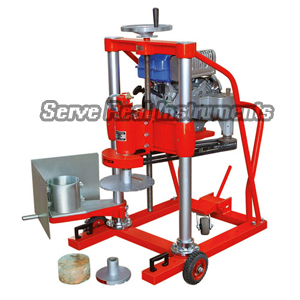

The concrete core drilling machine is mainly used in two aspects, first is horizontal hole drilling, suitable for road/track spike installation, road pile installation, bridge drilling hole, pile foundation drilling; the second is coring, coring road concrete sample for test. It’s kind of a very common road and building equipment.
Features: Except core drilling function, this machine also can do specimen cutting and grinding work.
Technical specifications
| Term | HZ-20 |
| Max. drilling dia.(mm) | Φ200 |
| Max. drilling depth(mm) | 400-700 |
| Motor power | 5.5/8.5/9/10/12HP, 13HP Manual/electric start; |
| Start mode | Manual |
| Main shaft rotation speed | 1100-1500r/min |
| Net weight | 130KG-160KG |
| Overall size | 1060*870*1300-1400mm |
