Model: FST-1
Description

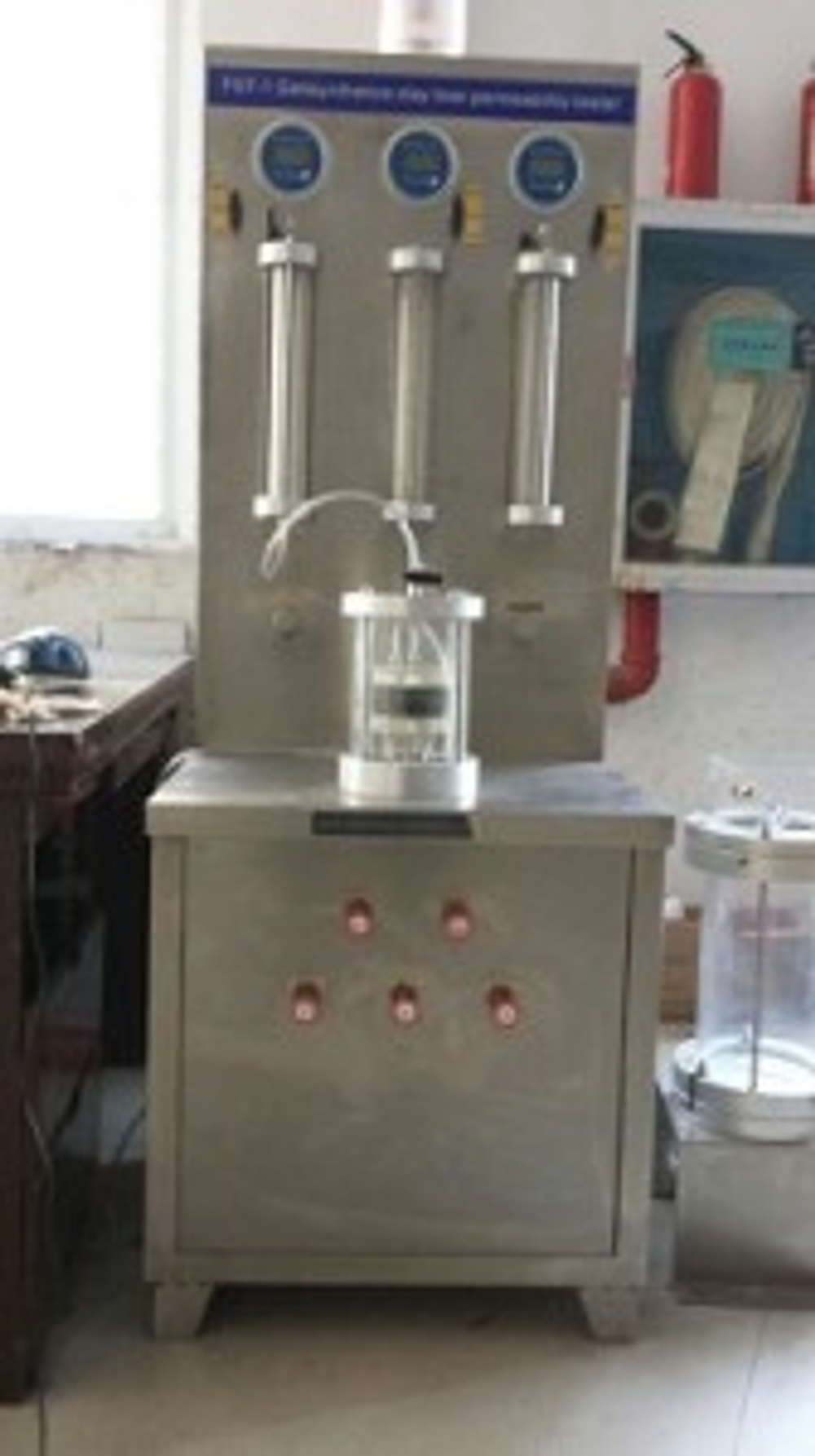

This tester is used to test the water permeability index of geosynthetics clay liner under specific water pressure and time. The enclosure is totally made of stainless steel.
Standards compliance
| ASTM D5887 | JG/T 193 |
Features
High accuracy pressure-tuning valve and pointer pressure gauge
Aluminum alloy made, oxidation treatment on surface, good appearance, good water proof performace.
Transparent pressure vessel, easy for observation of test process.
Stainless steel screw pull rod with good corrosion resistance.
Humidity and oil proof gas source parts.
ISO/ASTM standards compliance.
Testing data easy read, humanization design of keypress.
Technical specifications
Sample diameter: Φ100mm
Confining pressure:0-600kpa
End pressure: 0-550Kpa, continuous adjustable
Pressure mode: air pressure, constant speed pressure rise 70kpa/min
Permeability amount: accuracy to 1mm
Water reservation volume: 90mlx3
Porous stone diameter: Φ100mm
Overall size: 780x530x1020(mm)
