Model: GT1201
Description

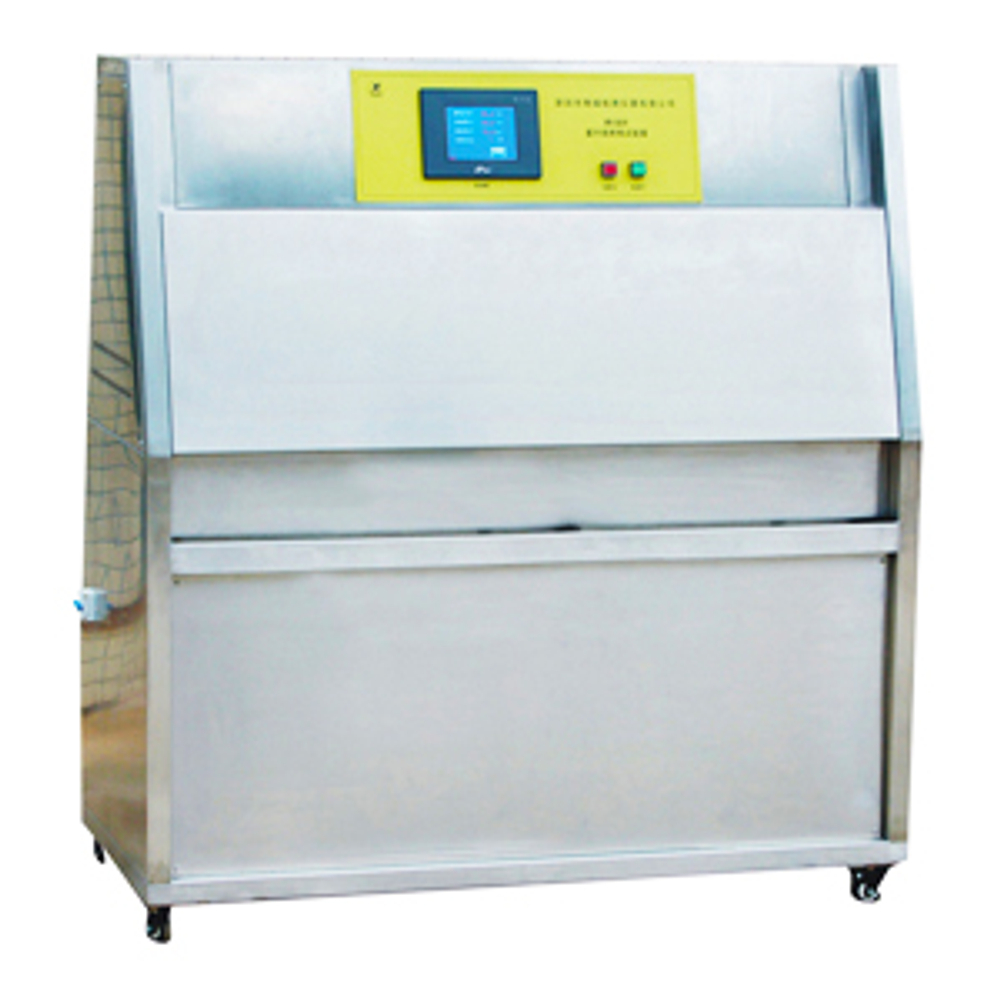

This tester is used to perform the light resistant, weather-proof and light aging test on various kinds of geosynthetics. It can simulate the light, heat, humidity, raining in the natural environment.
Standards compliance
ISO 4892-3,GB/T 16422.3,JTG E50 T1164
Technical specifications
UV wavelength: 280~400nm
Sample size and quantity: 200×80mm
Sample frame size: 300×80mm
Distance between sample and light tube: 55±2mm
Light tube paralle center distance: 70mm
Temperature range: ±10℃~70℃
Humidity range: ≥95%RH
Light tube quantity: 8PCS
Heating power and humidity power: 1000W, 1000W
Power supply: 380V 50Hz
Working room size: 500×450×1170 mm（L×W×H）
Overall size: 1380×500×1480 mm（L×W×H）
Features
Long service life light tube
Stainless steel chamber with electro-static spraying, inner is made of SU304 stainless steel plate
Japan made instruments, German PLC
Fast testing speed, 750 hours inside equals 20 years at natural environment.
Alarm will function when water shortage.
