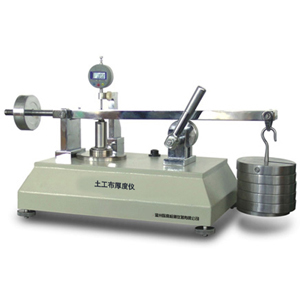

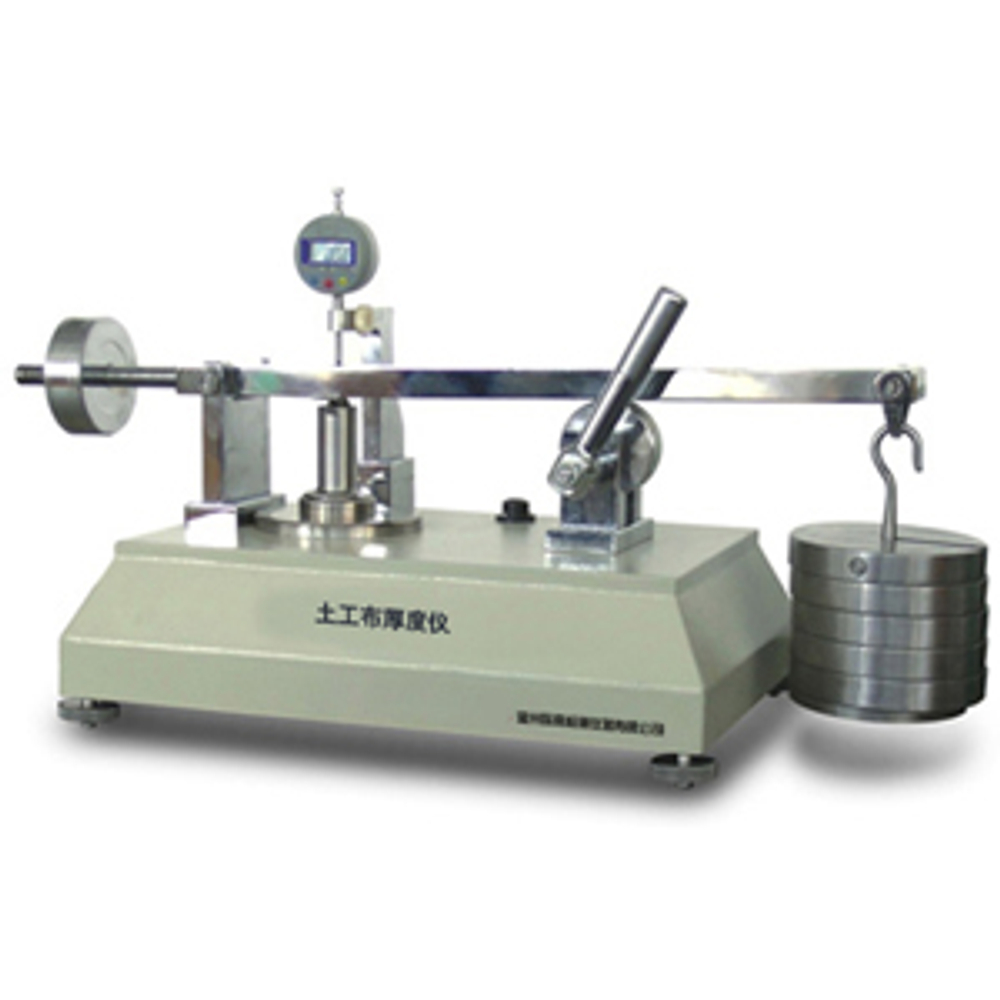

Model: GT060
Application
This tester is used to determine the thickness of geosynthetics and relevant products under different pressure within specified time.
Standards compliance
JTG E50, ISO 9863, GB/T 13761
Technical specifications
1. Pressure foot area: 25cm2( circle diameter: φ56.42mm)
2. Press-foot weight: 5N
3.Specimen pressure: 2±0.01kpa; 20±0.1kPa; 200±0.1kPa
4.Dial gauge: 0~24±0.01mm
5.Dial gauge: 0~1±0.001mm
6. Stop watch: min resolution is 0.1s
7.Overall size: 730×320×350mm
8. Weight: 40kg
