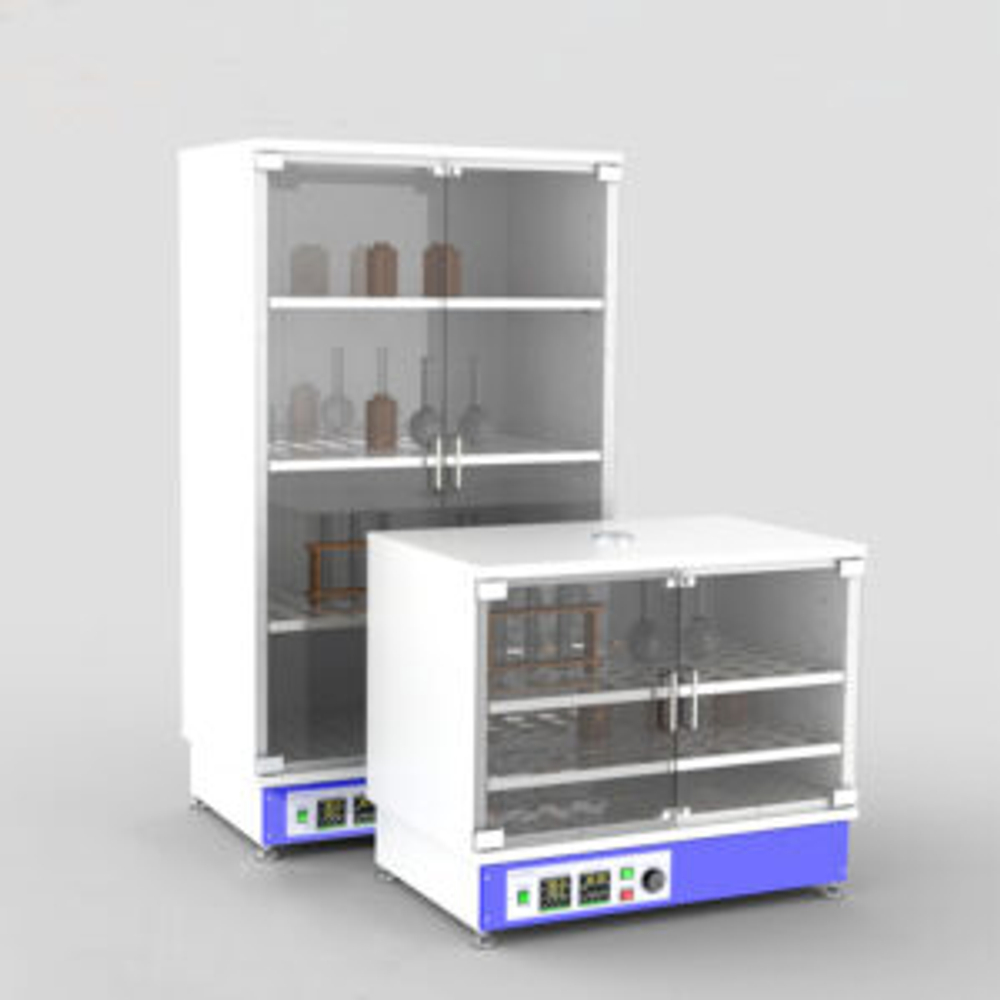

This cabinet is specially used to dry and store glassware by injecting air into the working volume at an adjustable temperature up to 60°C.
Features
Functional, easy-to-use and -to-clean, energy efficient.
The inner and outer casings are made of steel sheets coated with poxy paints. Durability. Control panel on below
2 security glasses. Shockproof.
Exclusive ventilation system! Air is sucked by fan engines located in the below part of the oven. lt is heated then blown out by the bottom part.
This air recycling and a permanent air change allows an excellent drying of your glassware. The moist air escape through an opening at the top of the cabinet.
Stainless steel shelves, multiple levels of loading. Perforated for better circulation of warm air.
PID electronic controller. Easy to use. Measurement by PT100 probe. End cycle timer, repeat loop.
Shelf with guide bars, Stainless steel made, perforated. Maximum distributed load : 30 kg
lf necessary, additional racks can be added. Subframe with casters for more comfortable loading. Swivel casters with brakes.
Specifications
| Model | DHG-GD380 | DHG-GD780 |
| Working volume (L) | 380 | 780 |
| Internal width (mm) | 900 | 900 |
| Internal depth (mm) | 580 | 580 |
| Internal height (mm) | 700 | 1430 |
| External width (mm) | 960 | 960 |
| External depth (mm) | 600 | 600 |
| External height (mm) | 882 | 1612 |
| Loading Shelves | ||
| Maximum number | 5 | 12 |
| Sizes (mm) | 890X560 | 890X560 |
| Maximum load (kg ) | 60 | 120 |
| Electrical | ||
| Power supply | 220V 50HAZ 16A | 220V 50HAZ 16A |
| Heating power | 1500 | 1500 |
