Standards: ISO/DIS 10545/7-1996, GB/T3810.7-2016

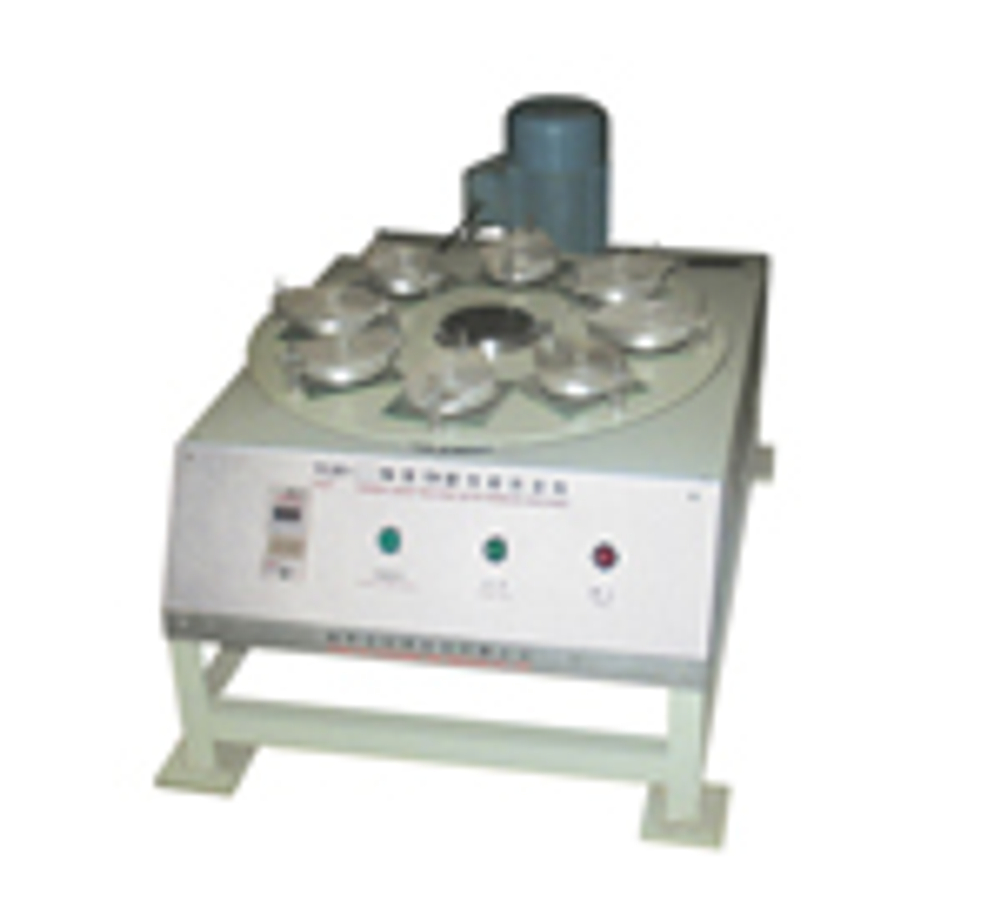

Model: CT-8
Description
This tester is mainly used for abrasion resistance test of glazed ceramic tile, it’s kind of common construction material testing equipment.
Technical Specifications
- Sample size: 100*100mm; can test 3 or 8 samples at a same time
- Distance between center and each sample center: 195mm, equal distance between two neighbouring clamps
- Supporting plate rated rotation rate: 300±10%rp/min
- Eccentric distance e=22.5㎜
- Clamp: inner diameter Ф83mm, inner height 25.5mm, test area about 54mm2
- Motor power: 1.1kw
- Power supply: 380V±10%, 50HZ±10%
