Model: FZ-023
Standard: GB/T 18318.3-2009

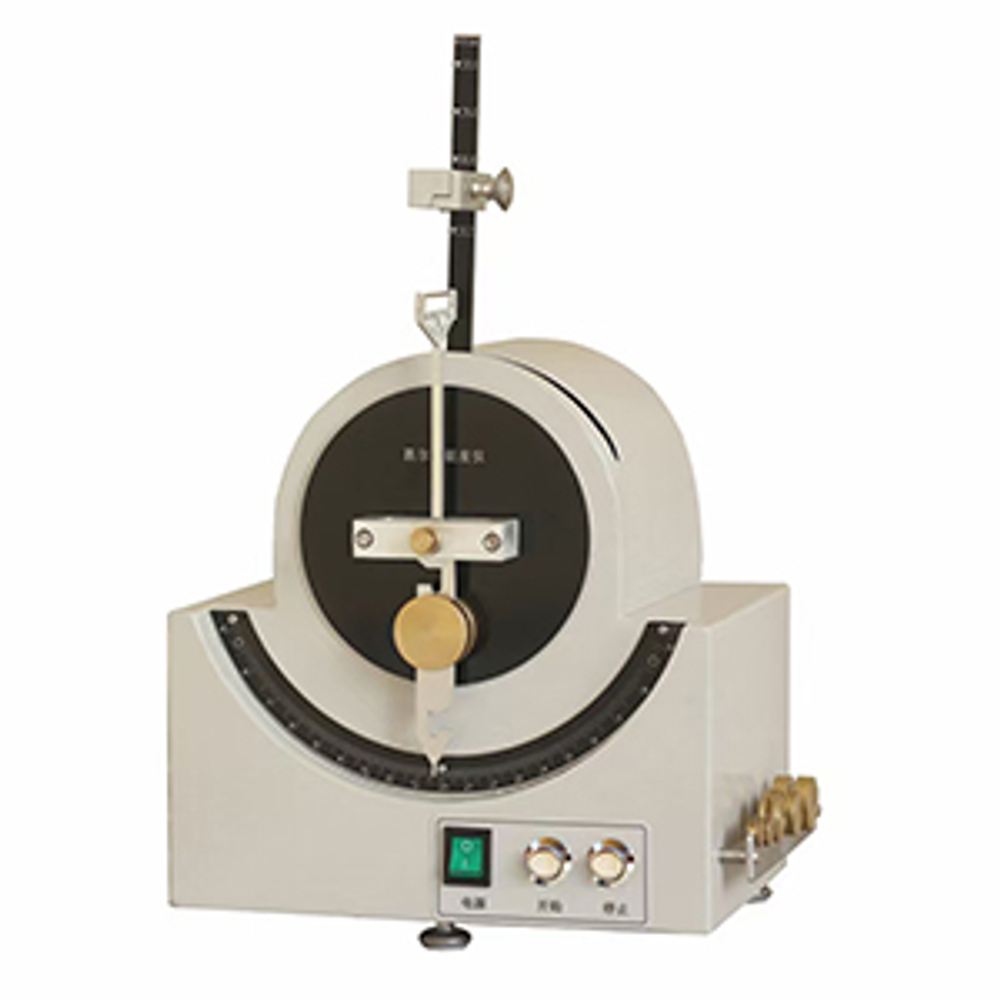

This tester is used to test the bending stiffness property of fabrics, nonwoven fabrics, artificial leather and other materials by Gurley method.
Specifications
| Measure range | 1.39mg~56888mg(Gurley stiffness unit) |
| Sample length | 50.8mm |
| Sample width | 1 to 5 times can be set |
| Test length | 12.7mm, 25.4mm, 50.8mm, 101.6mm |
| Swing speed | W=2r/min |
| Weights | 5g, 10g, 25g, 50g, 100g, 200g |
| Weights central distance | R1=25.4mm, r2=50.8mm, r3=101.6mm |
| Swing angle | <45 degree C |
| Dimensions | 300×180×460mm |
| Weight | 8kg |
| Power supply | AC220V 50Hz 30W |
