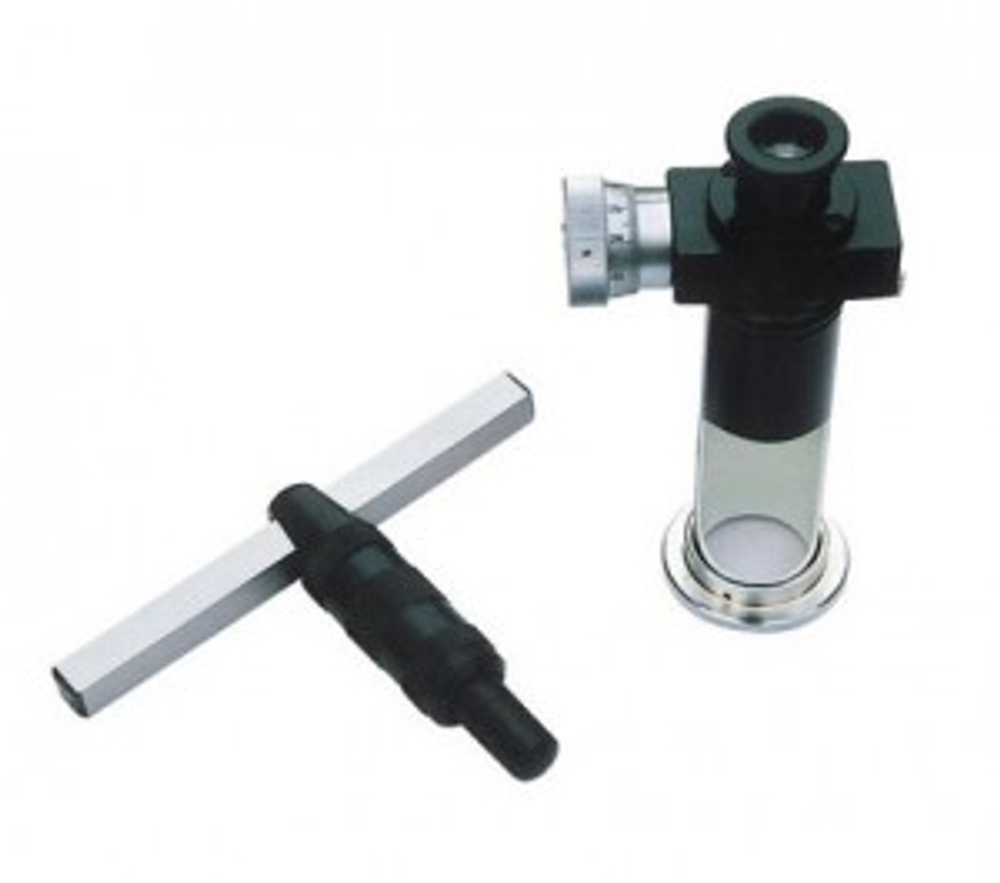

Hammering type Brinell hardness tester

Model: HBC

Description

The hammering type Brinell hardness tester is suitable to test the Brinell hardness of ferrous metal and non-ferrous metal, it’s kind of common material hardness tester.It features Portable, easy operation.

Tested objects

1. Natural or annealed condition steel

2. Refined quenched or quenched and tempered steel

3. Cast iron

4. Brassing castings

5. Rolled brass

6. Rolled red cooper

7. Tin-bronze coope alloy

8.Alloy aluminum castings

Technical specifications

Test range: 100-400HBS

Steel ball diameter: 10mm

Overall size: 25×110mm

Weight: 0.5kg

Accessoires

Standard hammering Brinell hardness block 2pcs

20times reading micro-scope 1set
