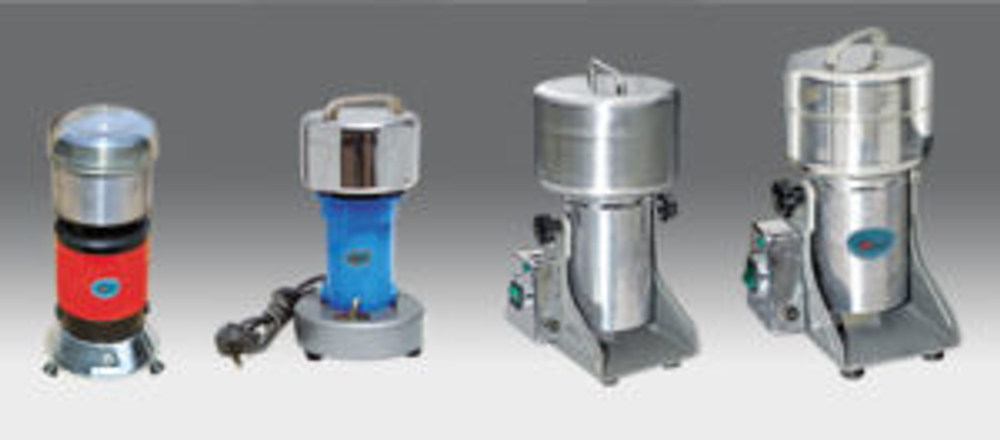

This series grinder can be used for grinding of grain, soil, medicine, ore minerals in laboratory.
Features
- High-speed motor and stainless steel crushing head provides fast crushing.
- Stainless steel crushing chamber prevents pollution.
- Quick disassembly for easy cleaning.
Specifications
| Model | FS-80 | FS-100 | FS-135 | FS-177 | ||||
| Crushing way | high speed collision | |||||||
| Working mode | Continuous | |||||||
| Enclosure made | Cold-rolled steel sheet with chemical-resistant coating on the surface | |||||||
| Crushing chamber | SUS single stretch | |||||||
| Crushing knife | Alloy steel | |||||||
| Crushing chamber cover | Resin | SUS | ||||||
| Crushing chamber dia.（mm） | φ80 | φ100 | φ135 | φ177 | ||||
| Batch input cap. | 50 | 100 | 200 | 400 | ||||
| Motor rotation rate（rpm） | 10000 | 24000 | ||||||
| Finished fineness | 60～200 | |||||||
| Rated power（kw） | 0.2 | 0.46 | 0.8 | 1.2 | ||||
| Overall size（W*D* Hmm） | φ130*280 | φ140*290 | 200*220*330 | 200*240*430 | ||||
| Package size（W*D* Hmm） | 300*160*180 | 325*180*190 | 250*250*400 | 250*250*430 | ||||
| Power supply | AC220V/0.9A | AC220V/2.1A | AC220V/3.6A | AC220V/5.5A | ||||
| Net weight | 4/4.5 | 3/3.5 | 6.5/7 | 9.5/10 | ||||
| Included accessories: brushes, fuses, wrenches, breakers | ||||||||
